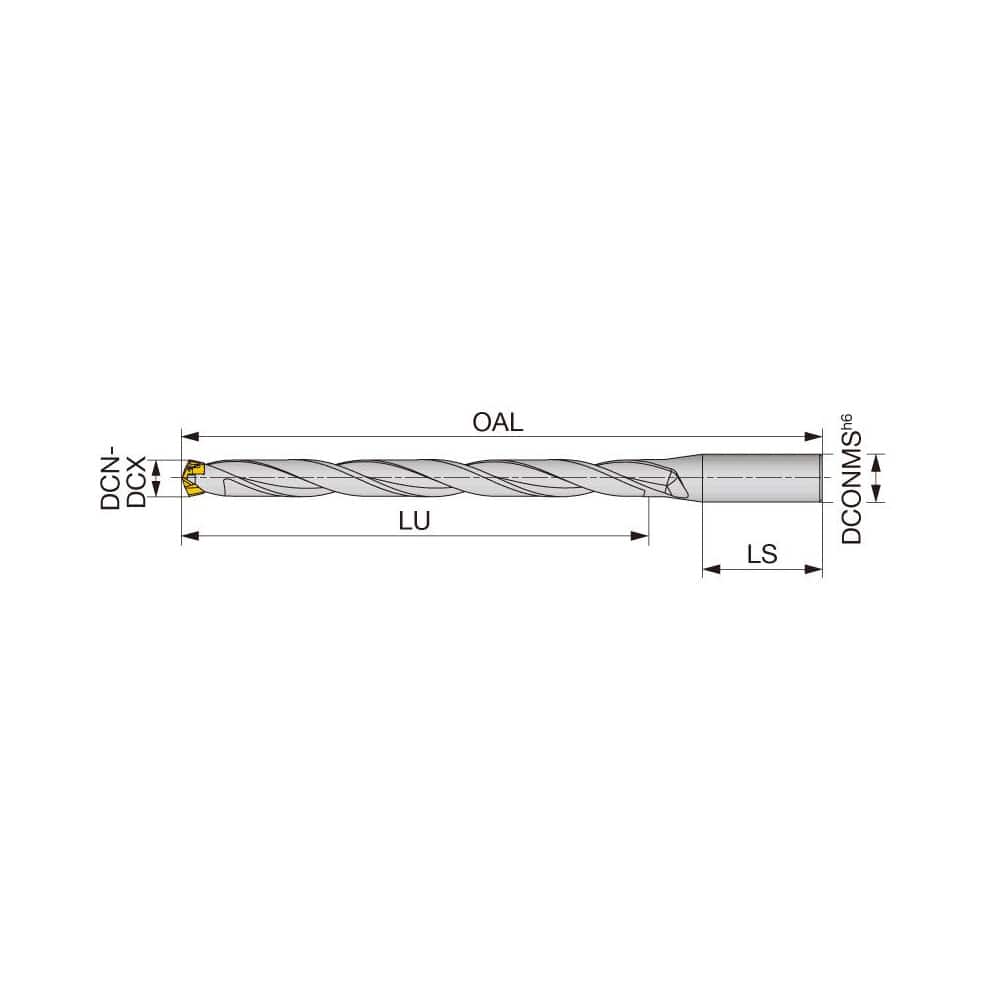

Replaceable Tip Drill: 0.866 to 0.902'' Drill Dia, 10.552″ Max Depth, 1'' Straight-Cylindrical Shank Uses DMP Inserts, 13.98 mm OAL, Through Coolant
Item #: 13456793
Brand: Tungaloy
Model #: 6754756
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.8660 |
| Maximum Drill Diameter (Decimal Inch) | 0.9020 |
| Maximum Drill Depth (Decimal Inch) | 10.5520 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 8.0000+ |
| Compatible Insert Style | DMP |
| Compatible Insert Size Code | 220 |
| Overall Length (mm) | 13.98 |
| Series | TID |
| Toolholder Style | TID |
| Shank Length (Decimal Inch) | 2.2100 |
| Tool Performance | General Purpose |
| Coolant Through | Yes |
