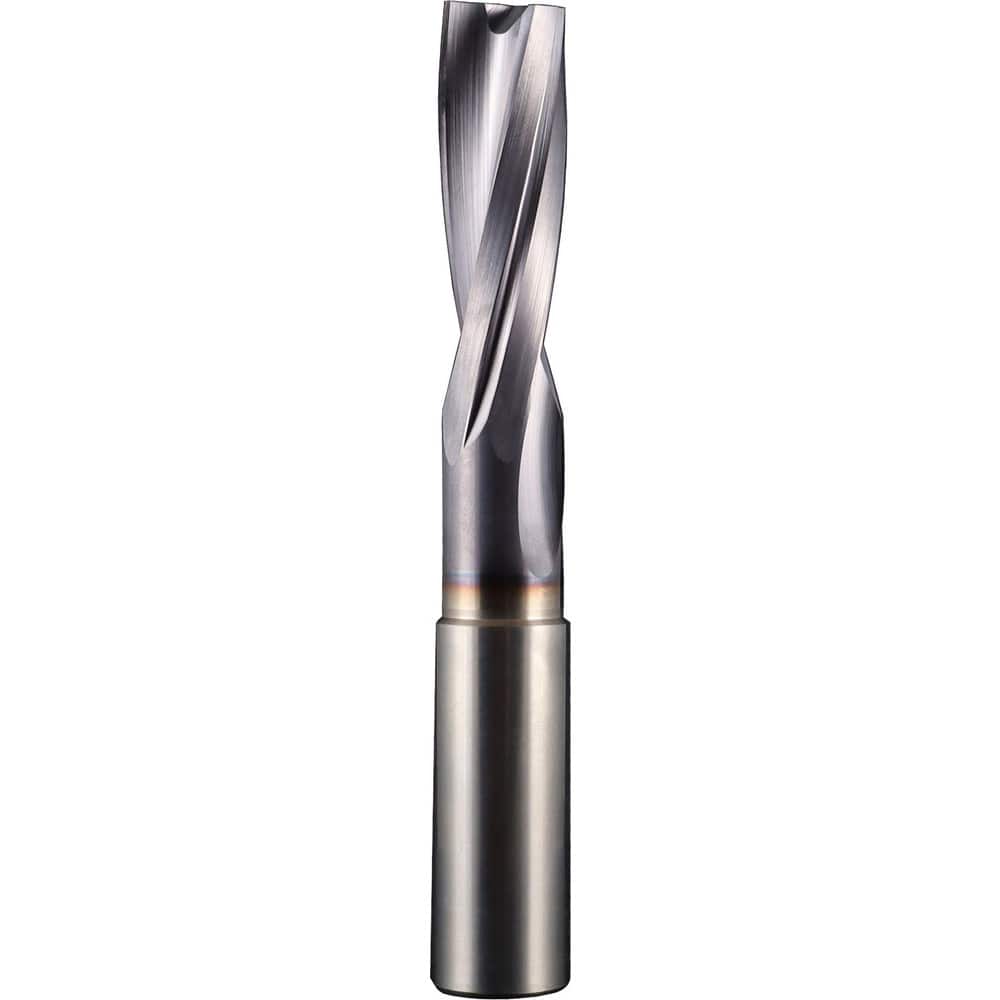

Screw Machine Length Drill Bit: 180 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 136U
Item #: 13420112
Brand: SGS
Model #: 67154
Product Specifications
| Drill Bit Size (mm) | 10.70 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 180 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 90.00 |
| Overall Length (Decimal Inch) | 3.5433 |
| Shank Diameter (mm) | 12.00 |
| Series | 136U |
| Number of Margins | 4 |
| Drill Length Type | Screw Machine |
| Point Type | Flat Bottom |
| Maximum Drilling Depth (mm) | 37.45 |
| Shank Length (Decimal Inch) | 2.0701 |
| Shank Length (mm) | 52.58 |
| Flute By Diameter Ratio | 2xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.007 to +0.025 |
| Flute Length (mm) | 37.45 |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| Drill Bit Size Range (mm) | 9.50 to 11.00 |
