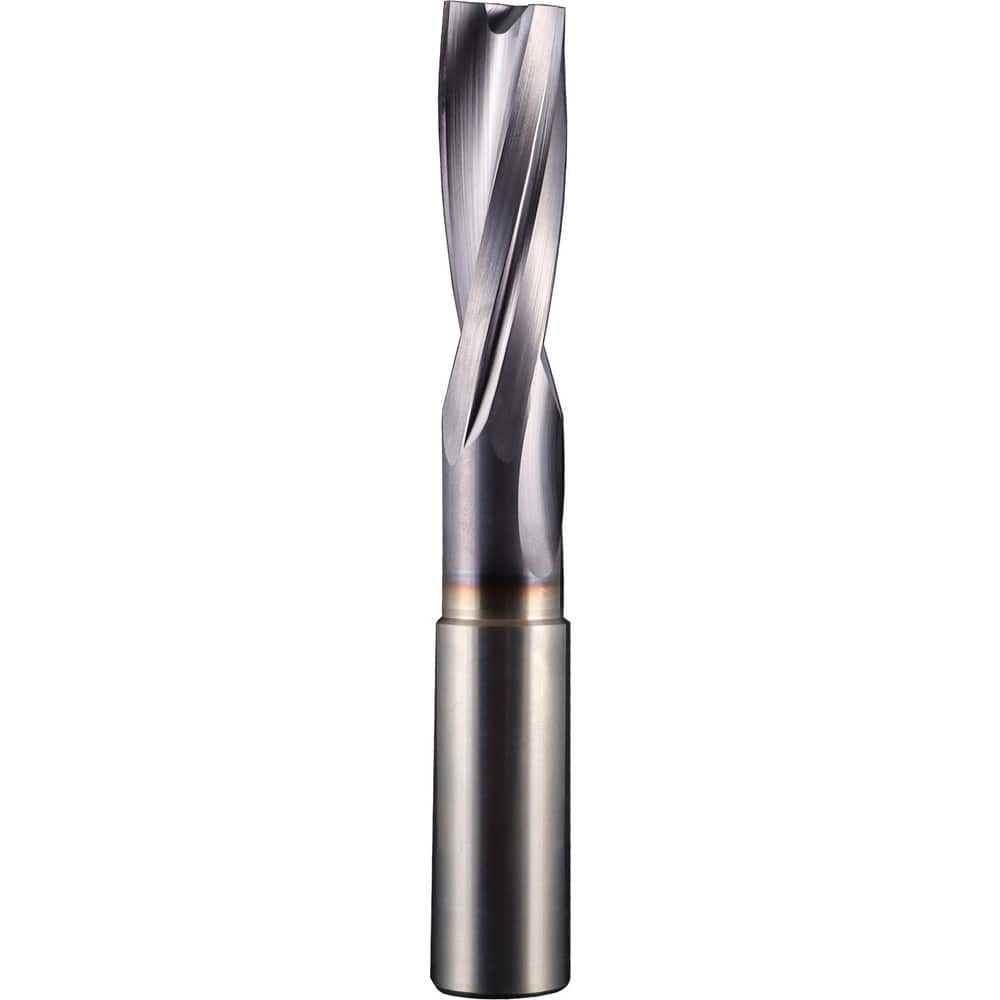

Screw Machine Length Drill Bit: 180 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 146U
Item #: 13419015
Brand: SGS
Model #: 58804
Product Specifications
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 180 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 60.00 |
| Overall Length (Decimal Inch) | 2.3622 |
| Shank Diameter (mm) | 6.00 |
| Series | 146U |
| Number of Margins | 4 |
| Drill Length Type | Screw Machine |
| Point Type | Flat Bottom |
| Maximum Drilling Depth (mm) | 16.80 |
| Shank Length (Decimal Inch) | 1.7000 |
| Shank Length (mm) | 43.18 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.00016 to +0.00063 |
| Flute Length (mm) | 16.80 |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
