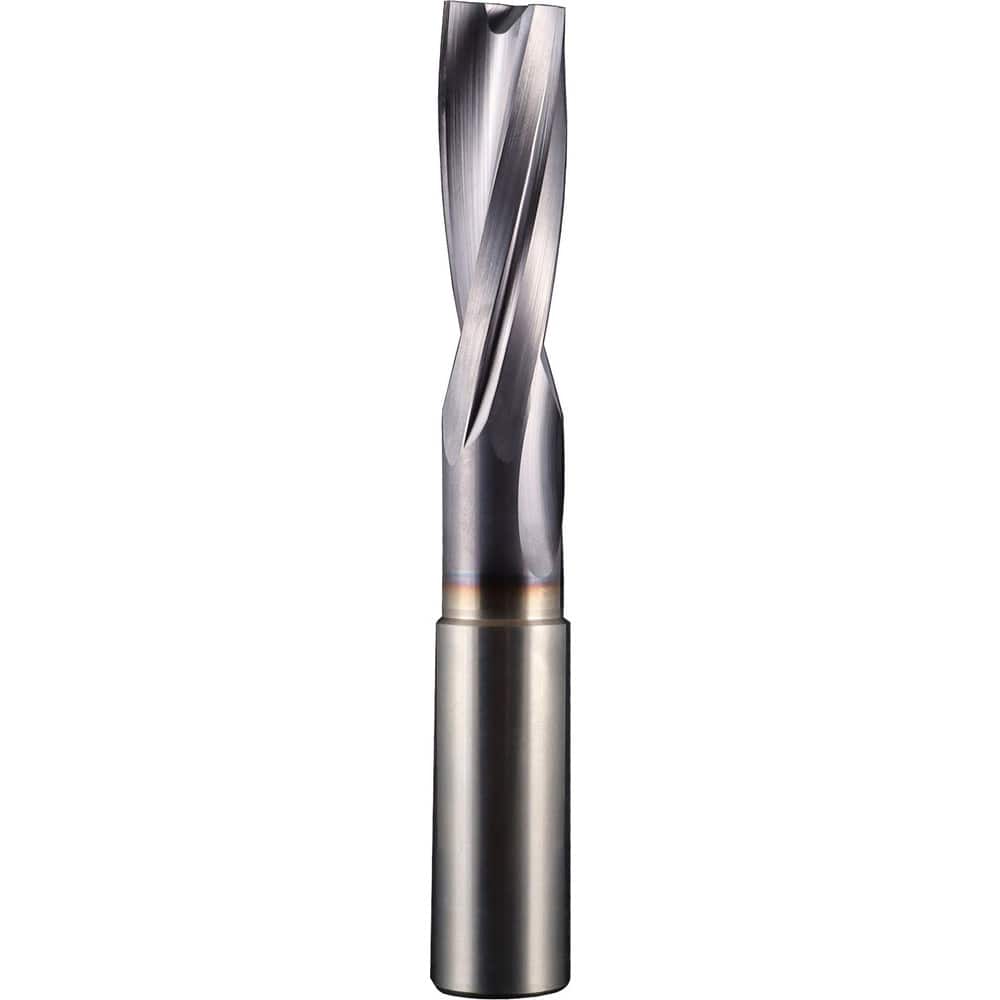

Screw Machine Length Drill Bit: 180 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 136U
Item #: 13417258
Brand: SGS
Model #: 67111
Product Specifications
| Drill Bit Size (mm) | 6.50 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 180 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Shank Diameter (mm) | 8.00 |
| Series | 136U |
| Number of Margins | 4 |
| Drill Length Type | Screw Machine |
| Point Type | Flat Bottom |
| Maximum Drilling Depth (mm) | 22.75 |
| Shank Length (Decimal Inch) | 1.8598 |
| Shank Length (mm) | 47.24 |
| Flute By Diameter Ratio | 2xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | 0.006 to +0.021 |
| Flute Length (mm) | 22.75 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Drill Bit Size Range (mm) | 5.00 to 6.50 |
