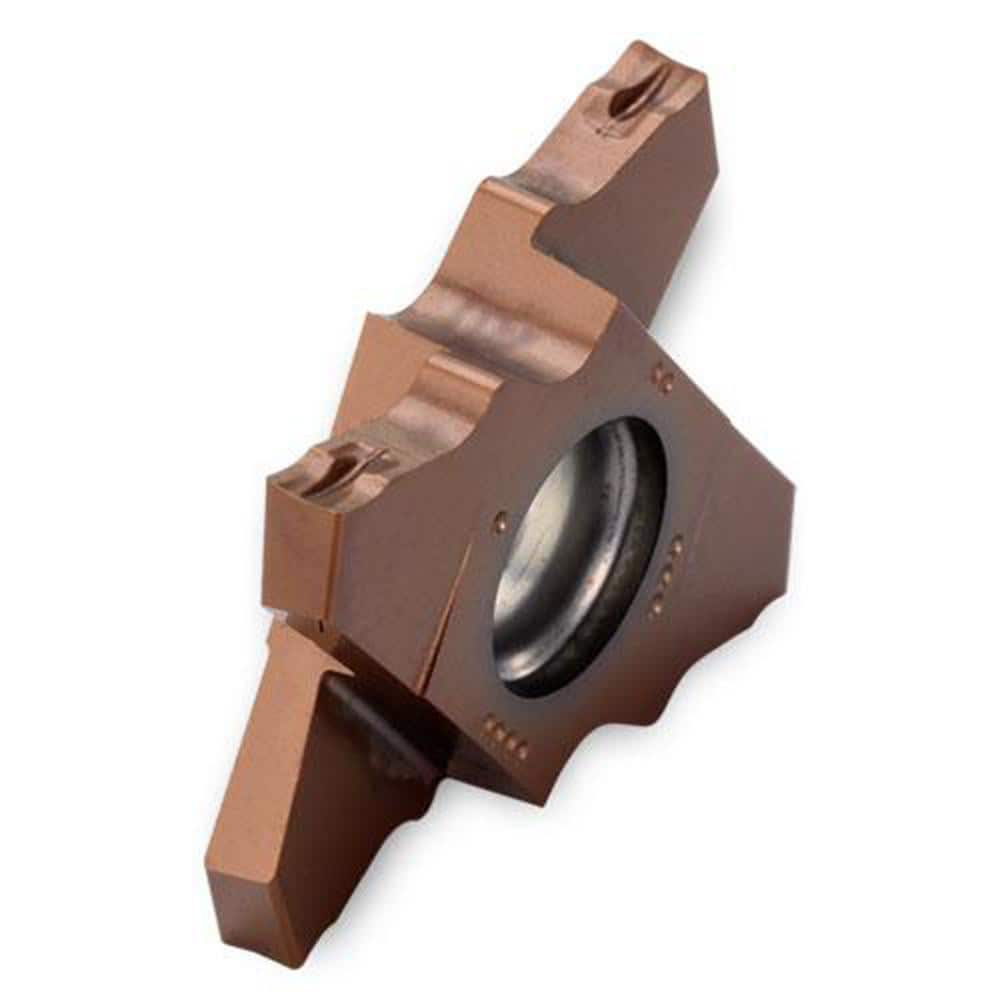

Grooving Insert: TQJJ TT4430, Solid Carbide AlTiCrN Finish, Left Hand, 0.059″ Cutting Width, Series TQJ20
Item #: 13396403
Brand: Ingersoll Cutting Tools
Model #: 6190802
Product Specifications
| Insert Style | TQJ |
| Insert Size Code | 20 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT4430 |
| Cutting Width (Decimal Inch) | 0.0590 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1500 to 0.2000 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Maximum Depth Of Cut Range (mm) | 5.00 to 10.00 |
| Lead Angle | 90 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | TQJ20 |
| Coating Process | PVD |
| Primary Workpiece Material | Hard Material; Steel |
| Chip Breaker | J |
| Coating/Finish | AlTiCrN |
