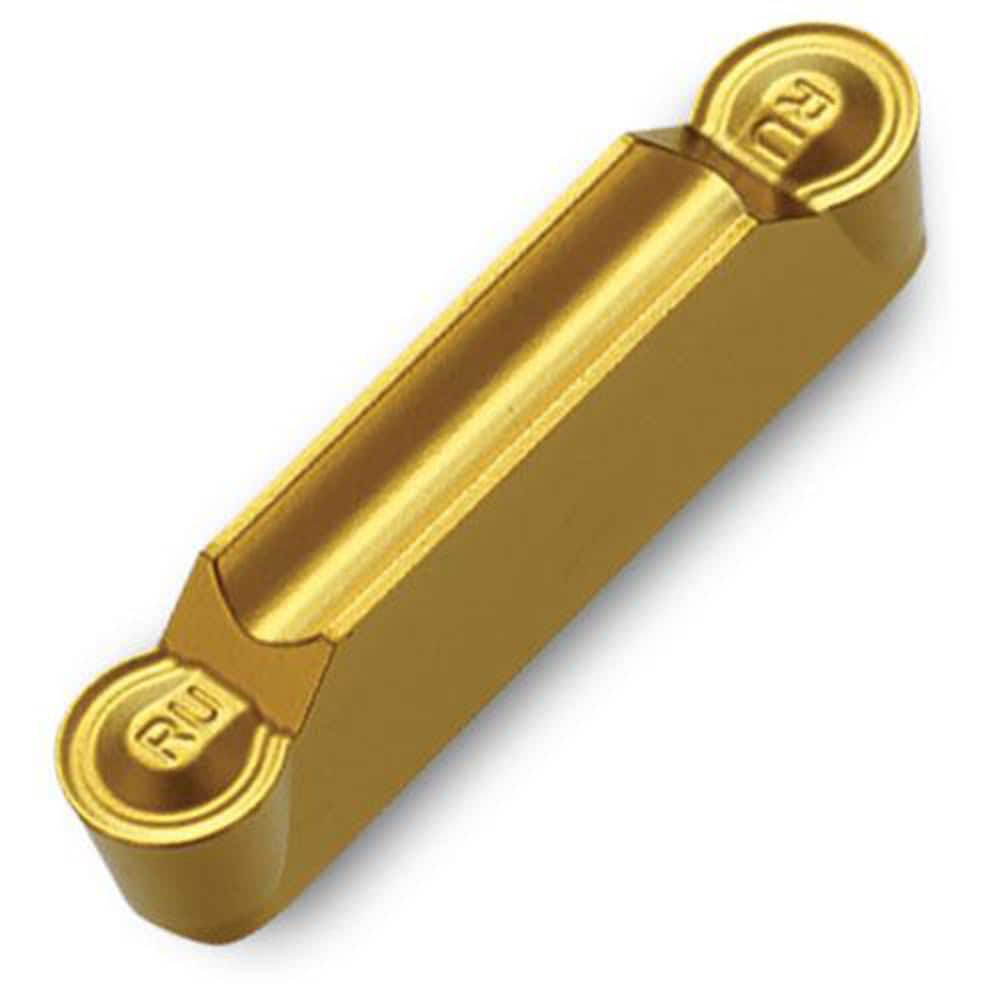

Grooving Insert: TDTRU K10, Solid Carbide Uncoated, Neutral, 0.079″ Cutting Width, Series TDT-RU (Full Radius)
Item #: 13393301
Brand: Ingersoll Cutting Tools
Model #: 6402048
Product Specifications
| Insert Style | TDT |
| Insert Size Code | 2 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | K10 |
| Cutting Width (Decimal Inch) | 0.0790 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Corner Radius (Decimal Inch) | 0.0390 |
| Maximum Depth Of Cut Range (mm) | 10.00 to 20.00 |
| Lead Angle | 90 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Profiling |
| Series | TDT-RU (Full Radius) |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.7900 |
| Overall Length (mm) | 0.79 |
| Primary Workpiece Material | Cast Iron |
| Chip Breaker | RU |
| Coating/Finish | Uncoated |
