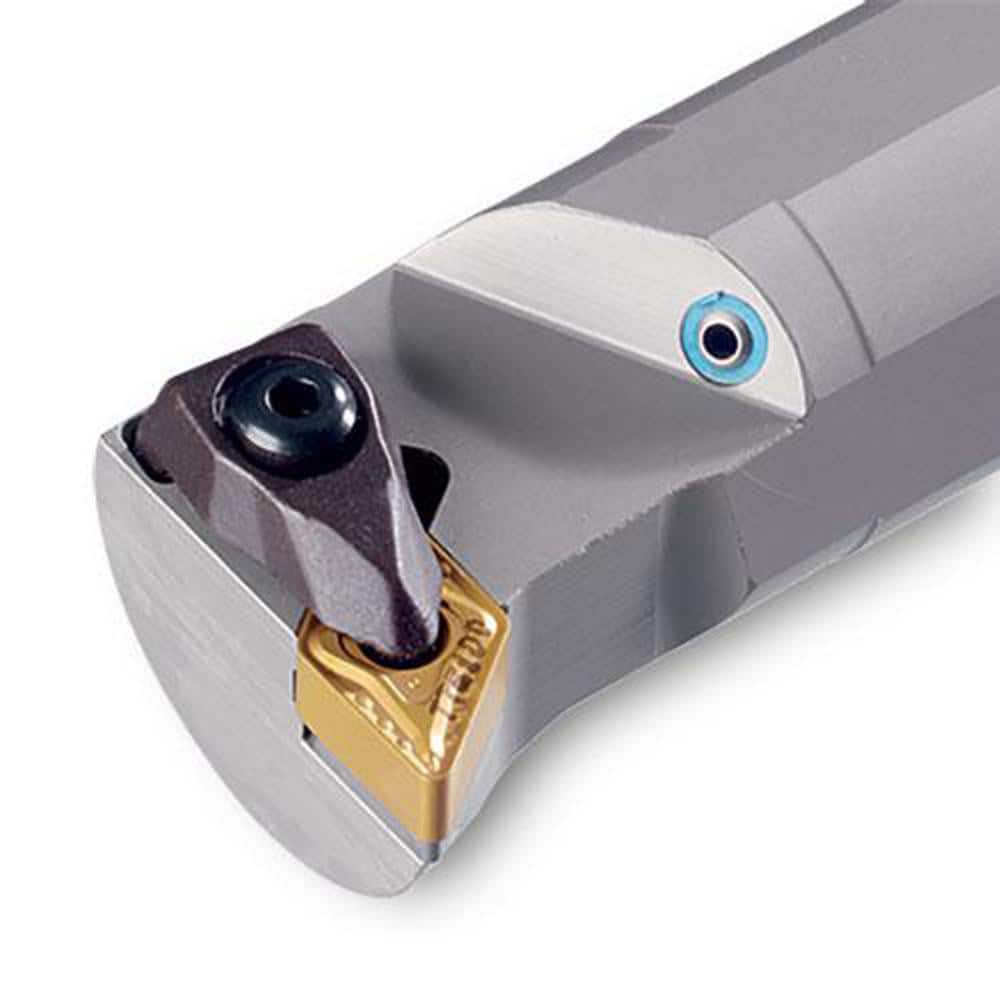

Indexable Boring Bar: A24U-TDUNL-4, 93.00° N/A Steel 14.0000″ OAL, Clamp,
Item #: 13390851
Brand: Ingersoll Cutting Tools
Model #: 3603175
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 2.0000 |
| Minimum Bore Diameter (Inch) | 2 |
| Maximum Bore Depth (Decimal Inch) | 6.0000 |
| Maximum Bore Depth (Inch) | 6 |
| Toolholder Style | TDUNL |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 14.0000 |
| Overall Length (mm) | 14.00 |
| Overall Length (Inch) | 14 |
| Compatible Insert Size Code | DN..3.53.5. |
| Insert Holding Method | Clamp |
| Compatible Insert Shape | Diamond |
| Insert Included | Yes |
| Rake | Negative |
| Cutting Direction | Left Hand |
| Rake Angle | 0.00 |
| Lead Angle | 93.00 |
| Series | A-TDUNR/L |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Compatible Insert Thickness (Decimal Inch) | 0.1870 |
| Cutting Tool Application | Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.1300 |
| Coolant Through | Yes |
