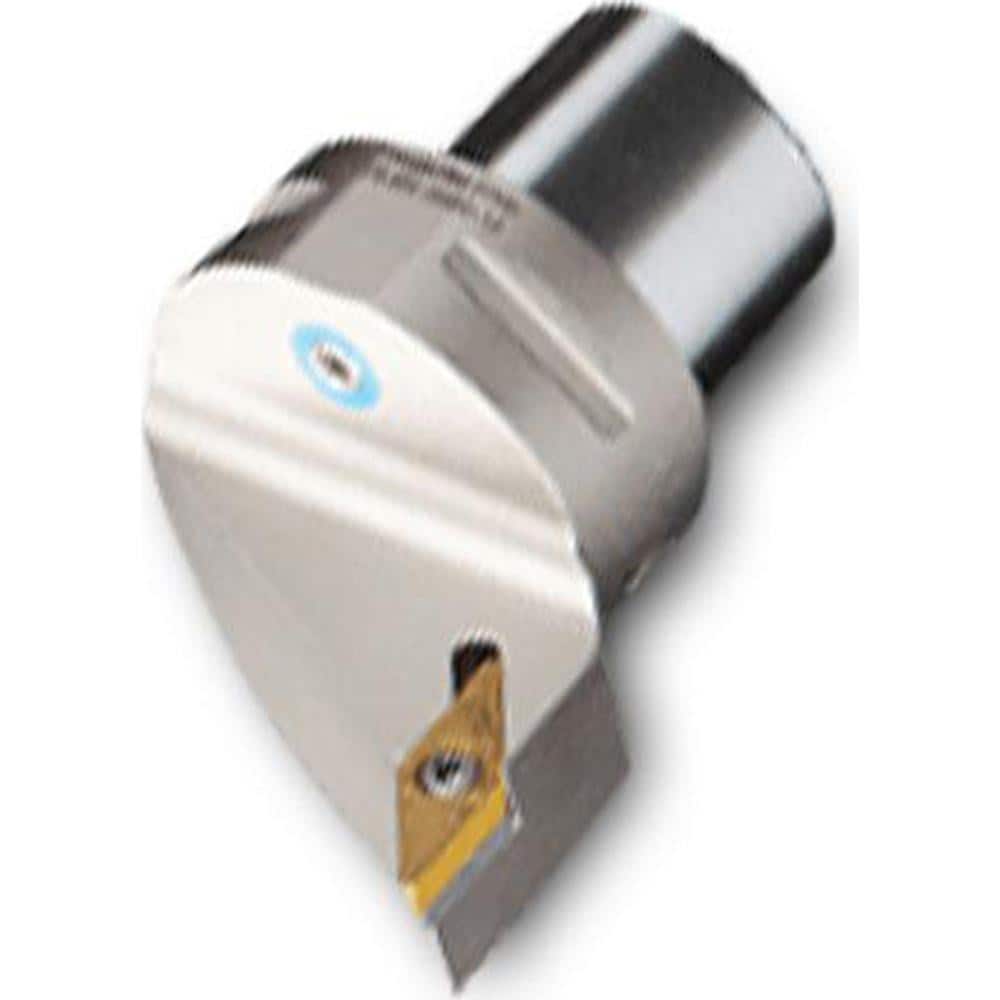

Modular Turning & Profiling Cutting Unit Head: Size C5, 60 mm Head Length, External, Left Hand 35 mm Center to Cutting Edge, Uses VB.. Inserts, Through Coolant
Item #: 13388350
Brand: Ingersoll Cutting Tools
Model #: 3605564
Product Specifications
| System Size | C5 |
| Maximum Hole Depth (mm) | 60.00 |
| Minimum Hole Diameter (mm) | 70.00 |
| Cutting Direction | Left Hand |
| Compatible Insert Style | VB.. |
| Compatible Insert Size Code | 33. |
| Internal or External | External |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 35.00 |
| Series | C-SVJB |
| Neck Diameter (mm) | 50.00 |
| Cutting Tool Application | Turning |
| Coolant Through | Yes |
| Head Length Projection (mm) | 60.00 |
