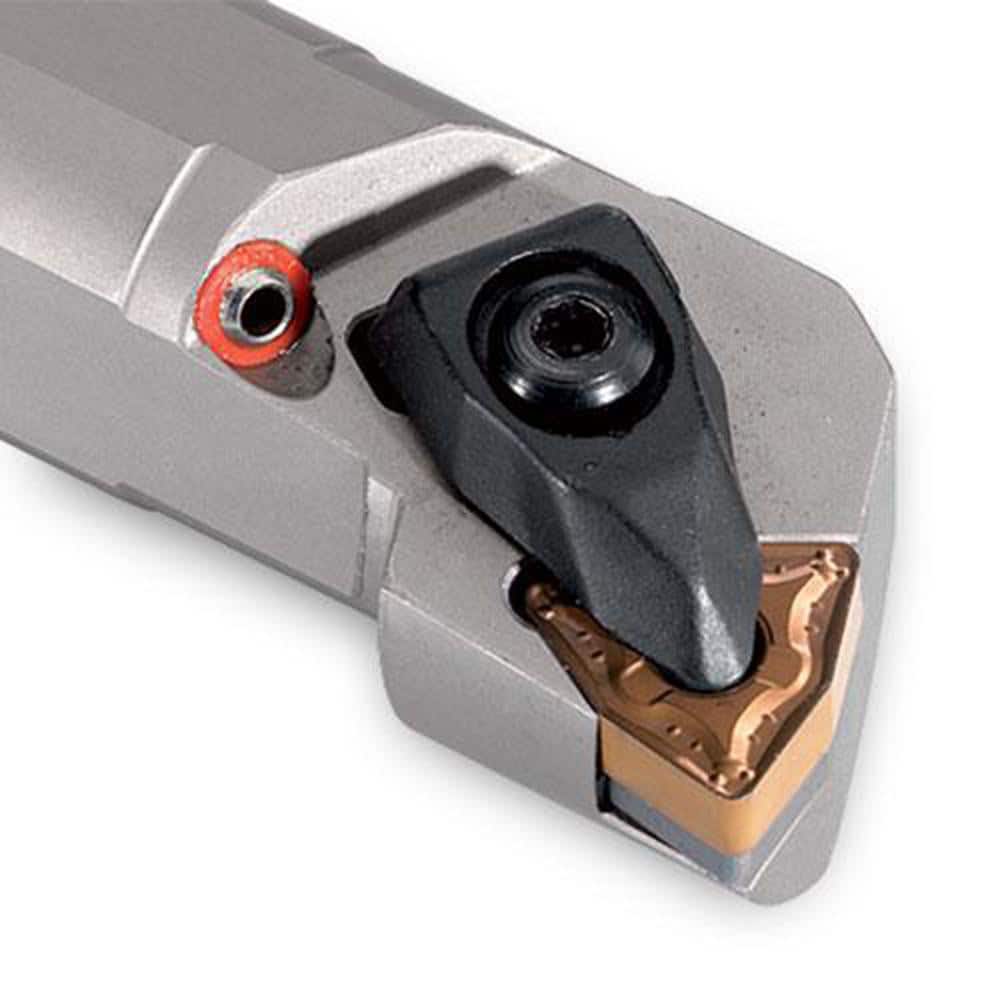

Indexable Boring Bar: A16T-TWLNR-3, 1.00 mm Shank Dia, 95.00° N/A Steel 12.0000″ OAL, Clamp,
Item #: 13387618
Brand: Ingersoll Cutting Tools
Model #: 6308507
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 1.2500 |
| Minimum Bore Diameter (Inch) | 1-1/4 |
| Maximum Bore Depth (Decimal Inch) | 4.0000 |
| Maximum Bore Depth (Inch) | 4 |
| Toolholder Style | TWLNR |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (mm) | 1.00 |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 12.0000 |
| Overall Length (mm) | 12.00 |
| Overall Length (Inch) | 12 |
| Compatible Insert Size Code | WN..432 |
| Insert Holding Method | Clamp |
| Compatible Insert Shape | Trigon |
| Insert Included | Yes |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Rake Angle | 0.00 |
| Lead Angle | 95.00 |
| Series | A-TWLNR/L |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1870 |
| Cutting Tool Application | Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6400 |
| Coolant Through | Yes |
