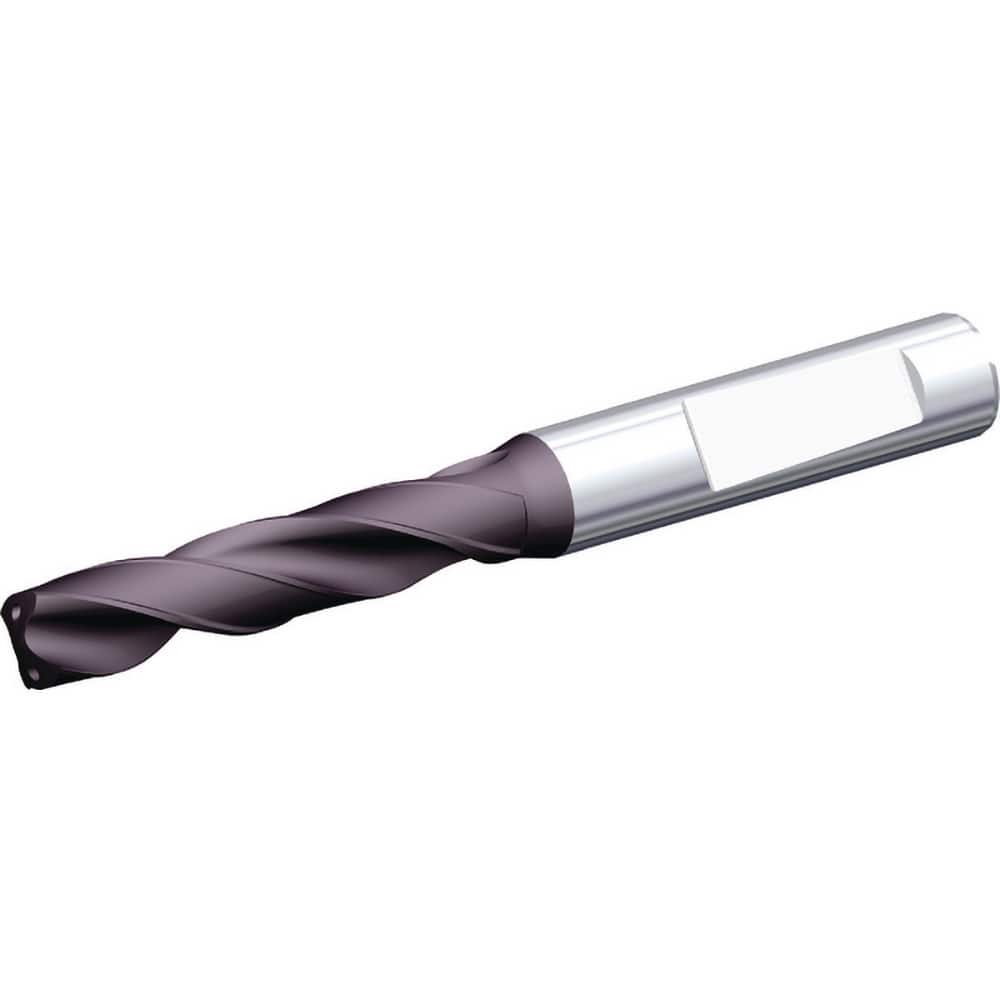

Die Drill Bit: 0.4134″ Dia, 132 °, Solid Carbide Coated, Series B978F
Item #: 13211404
Brand: Kennametal
Model #: 6594105
Product Specifications
| Drill Bit Type | Spiral Flute |
| Drill Bit Size (mm) | 10.50 |
| Tool Material | Carbide |
| Coating/Finish | Coated |
| Flute Length (Decimal Inch) | 4.3307 |
| Flute Length (mm) | 11.00 |
| Drill Point Angle | 132 |
| Overall Length (mm) | 15.80 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 12.00 |
| Coolant Through | Yes |
| Drill Bit Size (Decimal Inch) | 0.4134 |
| Overall Length (Decimal Inch) | 6.2205 |
| Series | B978F |
| Number Of Flutes | 2 |
| Cutting Direction | Right Hand |
| Drill Point Length (mm) | 2.2200000000000002 |
| Drill Point Length (Decimal Inch) | 0.0874 |
| Maximum Drilling Depth (Decimal Inch) | 3.7795 |
| Maximum Drilling Depth (mm) | 96.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 45.00 |
| Flute By Diameter Ratio | 9xD |
