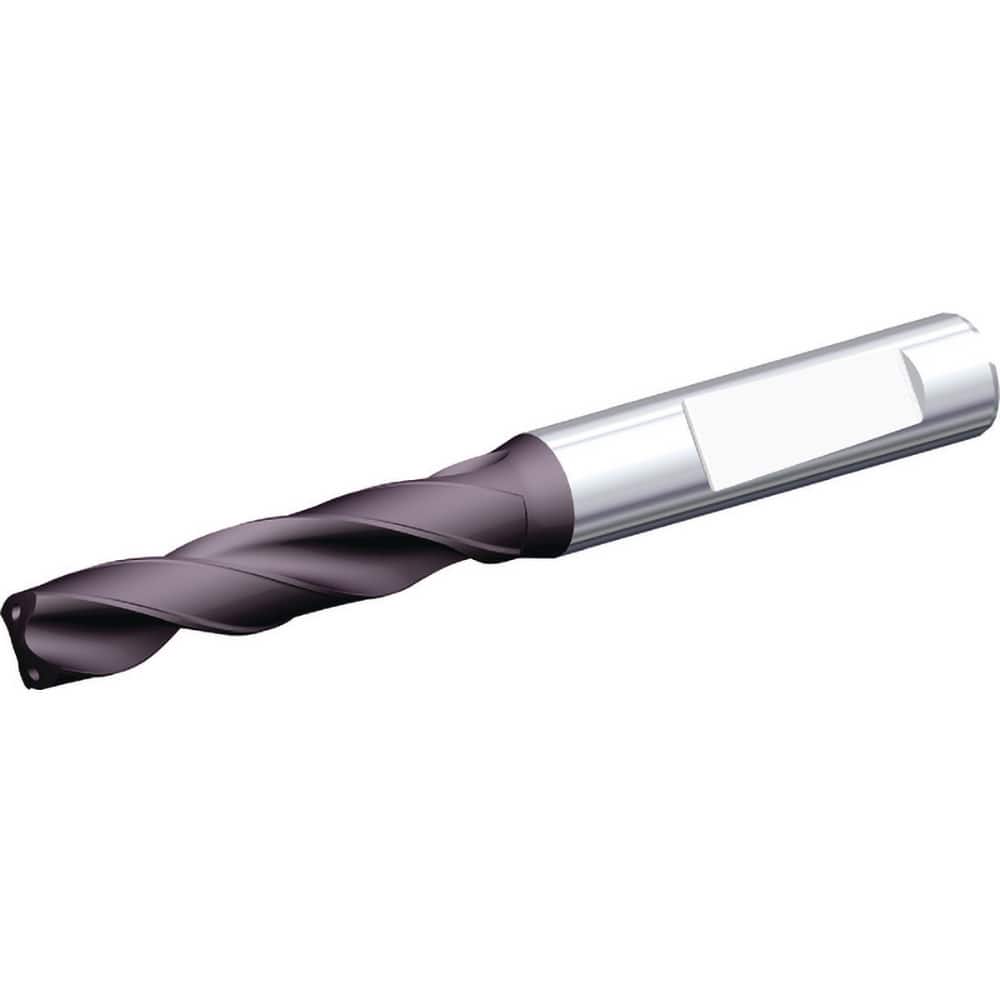

Die Drill Bit: 0.2598″ Dia, 132 °, Solid Carbide Coated, Series B978F
Item #: 13211271
Brand: Kennametal
Model #: 6098864
Product Specifications
| Drill Bit Type | Spiral Flute |
| Drill Bit Size (mm) | 6.60 |
| Tool Material | Carbide |
| Coating/Finish | Coated |
| Flute Length (Decimal Inch) | 2.6378 |
| Flute Length (mm) | 67.00 |
| Drill Point Angle | 132 |
| Overall Length (mm) | 105.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Shank Diameter (mm) | 8.00 |
| Coolant Through | Yes |
| Drill Bit Size (Decimal Inch) | 0.2598 |
| Overall Length (Decimal Inch) | 4.1339 |
| Series | B978F |
| Number Of Flutes | 2 |
| Cutting Direction | Right Hand |
| Drill Point Length (mm) | 1.38 |
| Drill Point Length (Decimal Inch) | 0.0543 |
| Maximum Drilling Depth (Decimal Inch) | 2.2441 |
| Maximum Drilling Depth (mm) | 57.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Flute By Diameter Ratio | 8xD |
