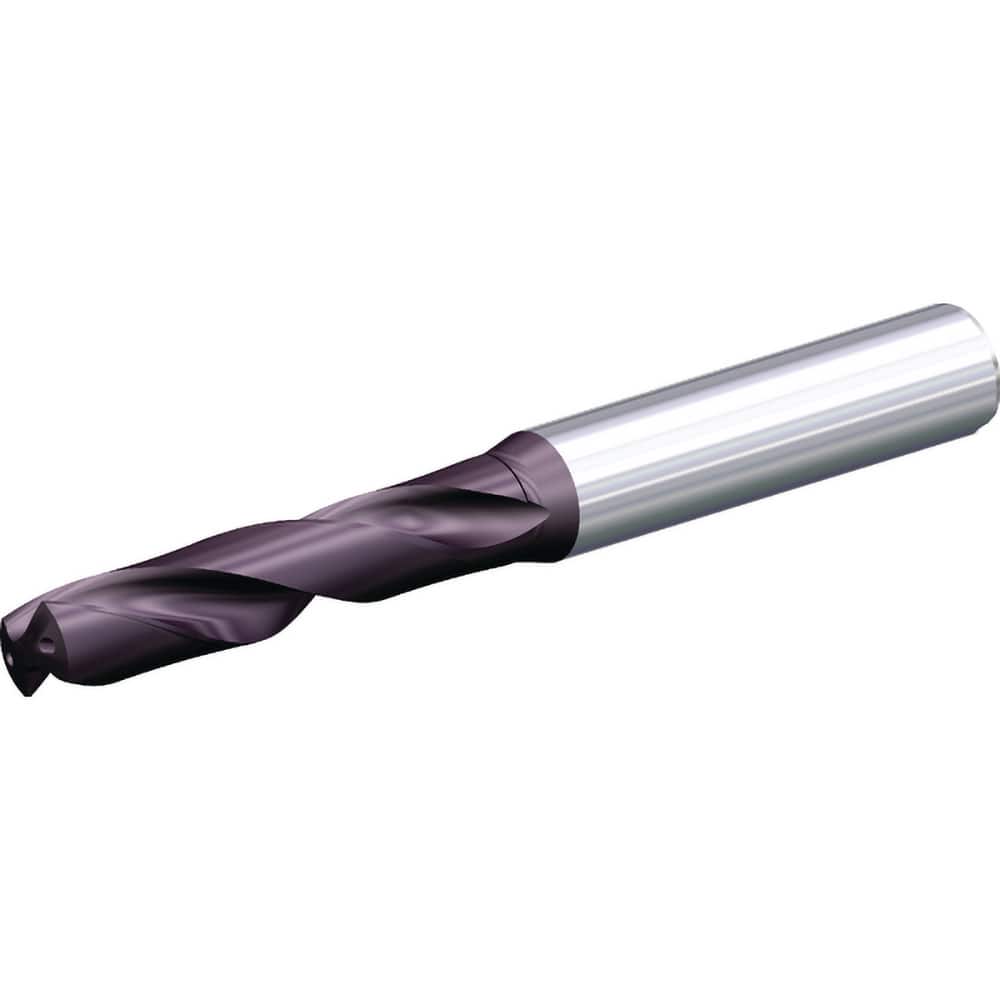

Jobber Length Drill Bit: 0.5156″ Dia, 140 °, Solid Carbide AlTiN Finish, 4.8819″ OAL, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank, Series B211
Item #: 13211164
Brand: Kennametal
Model #: 6393619
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.5156 |
| Drill Bit Size (mm) | 13.09 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Helical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Overall Length (mm) | 124.00 |
| Overall Length (Decimal Inch) | 4.8819 |
| Flute Length (mm) | 77.00 |
| Flute Length (Decimal Inch) | 3.0315 |
| Series | B211 |
| Flute Length x Diamter Ratio | 4xD |
| Flute By Diameter Ratio | 4xD |
| Shank Diameter (mm) | 14.00 |
| Maximum Drilling Depth (Decimal Inch) | 2.3622 |
| Maximum Drilling Depth (mm) | 60.00 |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Drill Point Length (mm) | 1.94 |
| Drill Point Length (Decimal Inch) | 0.0764 |
