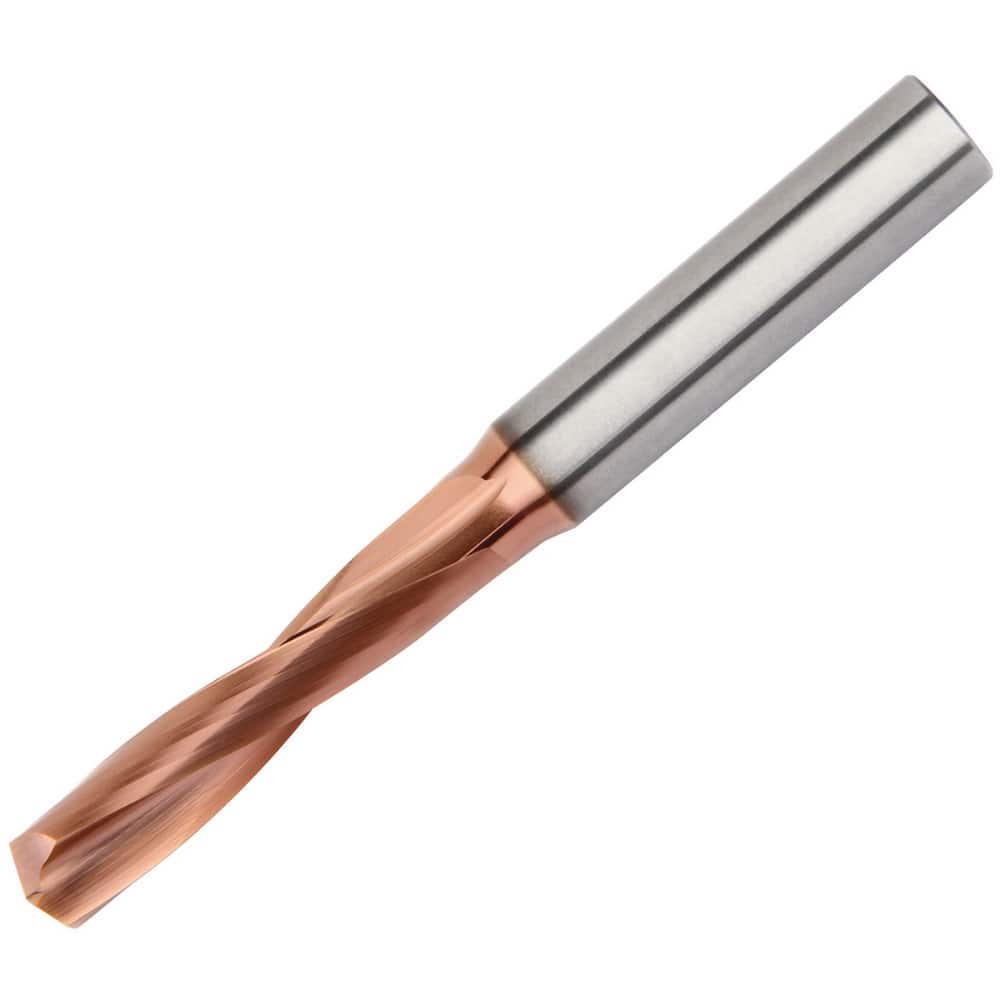

Screw Machine Length Drill Bit: 142 °, Solid Carbide Coated, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank, Series B941
Item #: 13210760
Brand: Kennametal
Model #: 6594087
Product Specifications
| Drill Bit Size (mm) | 2.80 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 142 |
| Flute Type | Helical |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Overall Length (mm) | 50.00 |
| Overall Length (Decimal Inch) | 1.9685 |
| Shank Diameter (mm) | 3.00 |
| Series | B941 |
| Maximum Drilling Depth (Decimal Inch) | 0.3543 |
| Maximum Drilling Depth (mm) | 9.00 |
| Shank Length (Decimal Inch) | 1.1024 |
| Shank Length (mm) | 28.00 |
| Drill Point Length (mm) | 0.52 |
| Drill Point Length (Decimal Inch) | 0.0205 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (Decimal Inch) | 0.6299 |
| Flute Length (mm) | 16.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
