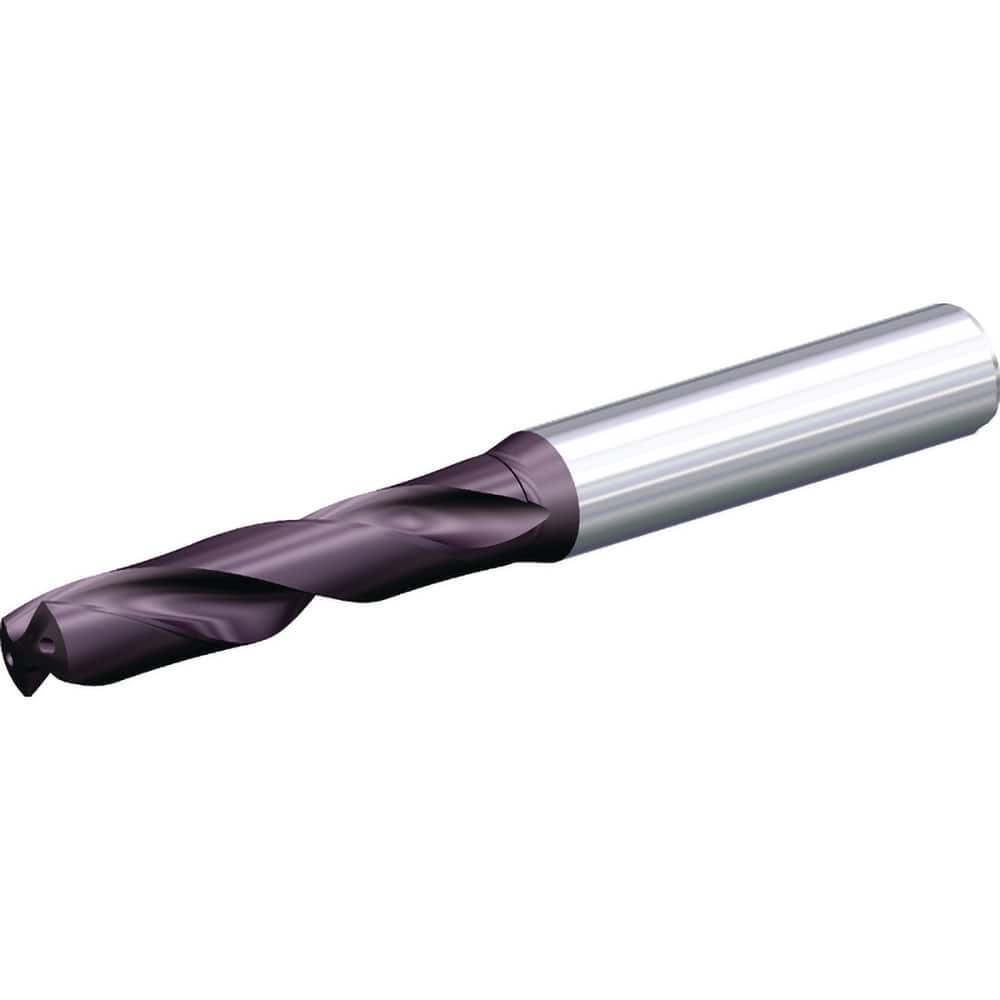

Screw Machine Length Drill Bit: 140 °, Solid Carbide Bright/Uncoated, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank, Series K210
Item #: 13210695
Brand: Kennametal
Model #: 6351171
Product Specifications
| Drill Bit Size (mm) | 6.53 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Overall Length (mm) | 79.00 |
| Overall Length (Decimal Inch) | 3.1102 |
| Shank Diameter (mm) | 7.94 |
| Series | K210 |
| Maximum Drilling Depth (Decimal Inch) | 1.1142 |
| Maximum Drilling Depth (mm) | 28.30 |
| Shank Length (Decimal Inch) | 1.5157 |
| Shank Length (mm) | 38.50 |
| Drill Point Length (mm) | 0.97 |
| Drill Point Length (Decimal Inch) | 0.0382 |
| Flute By Diameter Ratio | 4xD |
| Flute Length (Decimal Inch) | 1.4961 |
| Flute Length (mm) | 38.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
