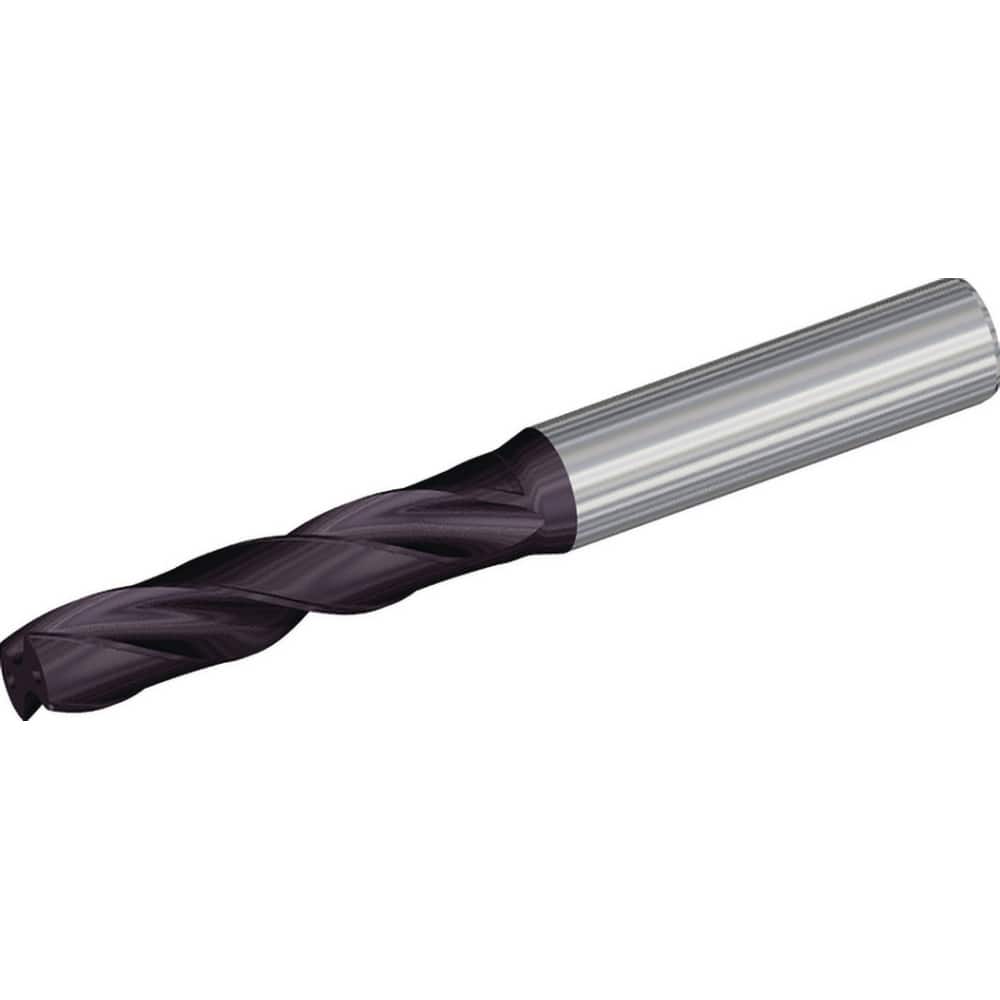

Screw Machine Length Drill Bit: 180 °, Solid Carbide Coated, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank, Series B707
Item #: 13210679
Brand: Kennametal
Model #: 6628177
Product Specifications
| Drill Bit Size (mm) | 12.20 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 180 |
| Flute Type | Helical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Overall Length (mm) | 107.00 |
| Overall Length (Decimal Inch) | 4.2126 |
| Shank Diameter (mm) | 14.00 |
| Series | B707 |
| Maximum Drilling Depth (Decimal Inch) | 1.6929 |
| Maximum Drilling Depth (mm) | 43.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 45.00 |
| Drill Point Length (mm) | 0.41 |
| Drill Point Length (Decimal Inch) | 0.0161 |
| Flute By Diameter Ratio | 3.5xD |
| Flute Length (Decimal Inch) | 2.3622 |
| Flute Length (mm) | 60.00 |
| Drill Bit Size Range (Decimal Inch) | 0.4500 to 0.5000 |
