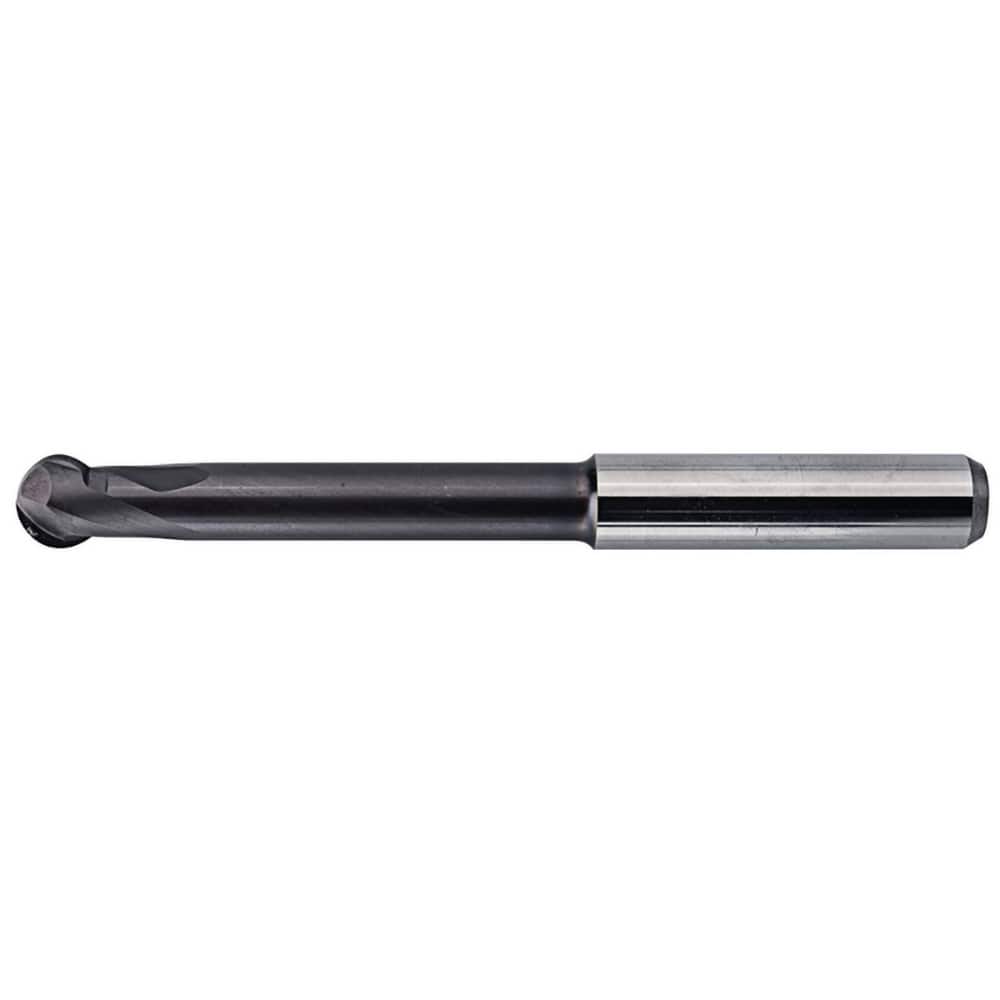

Ball End Mill: 0.1575″ Dia, 0.0787″ LOC, 2 Flute, Solid Carbide 80 mm OAL, 6 mm Shank Dia, 30 ° Helix, AlTiN Coated, Single End
Item #: 13203591
Brand: Kennametal
Model #: 6524778
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1575 |
| Mill Diameter (mm) | 4.00 |
| Length of Cut (mm) | 2.00 |
| End Mill Material | Solid Carbide |
| Helix Angle | 30 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.0500 to 0.1000 |
| Variable Helix | No |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Nose Radius (Decimal Inch) | 0.0787 |
| Reach Length (mm) | 2.00 |
| Reach Length (Decimal Inch) | 0.0787 |
| Overall Length (Decimal Inch) | 3.1496 |
| Overall Length (mm) | 80.00 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0787 |
| Manufacturers Catalog Number | F2AB0400AWL30 |
