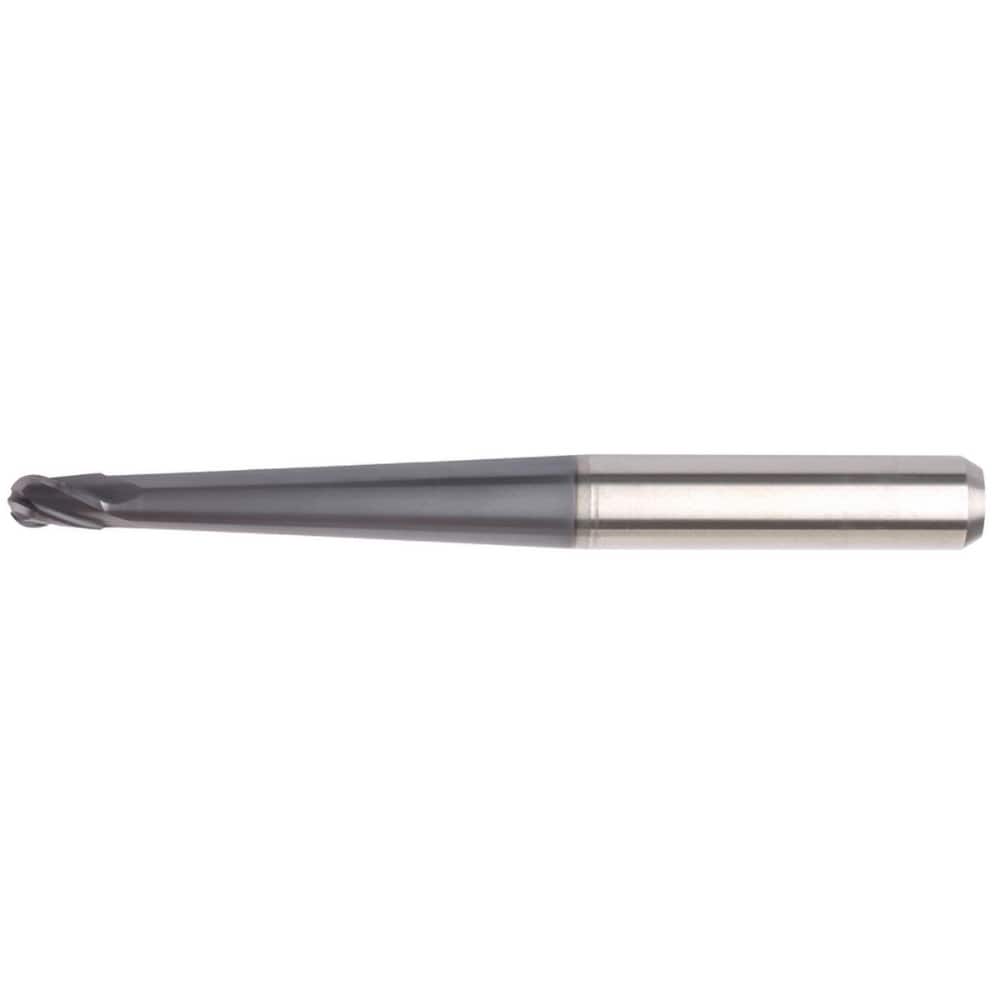

Ball End Mill: 0.1969″ Dia, 0.2362″ LOC, 4 Flute, Solid Carbide 75 mm OAL, 6 mm Shank Dia, 30 ° Helix, AlTiN Coated, Single End
Item #: 13201504
Brand: Kennametal
Model #: 6433714
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1969 |
| Mill Diameter (mm) | 5.00 |
| Length of Cut (mm) | 6.00 |
| End Mill Material | Solid Carbide |
| Helix Angle | 30 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.2000 to 0.4000 |
| Variable Helix | No |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Nose Radius (Decimal Inch) | 0.0984 |
| Reach Length (mm) | 6.00 |
| Reach Length (Decimal Inch) | 0.2362 |
| Overall Length (Decimal Inch) | 2.9528 |
| Overall Length (mm) | 75.00 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2362 |
| Manufacturers Catalog Number | F4AL0500AWM30L060 |
