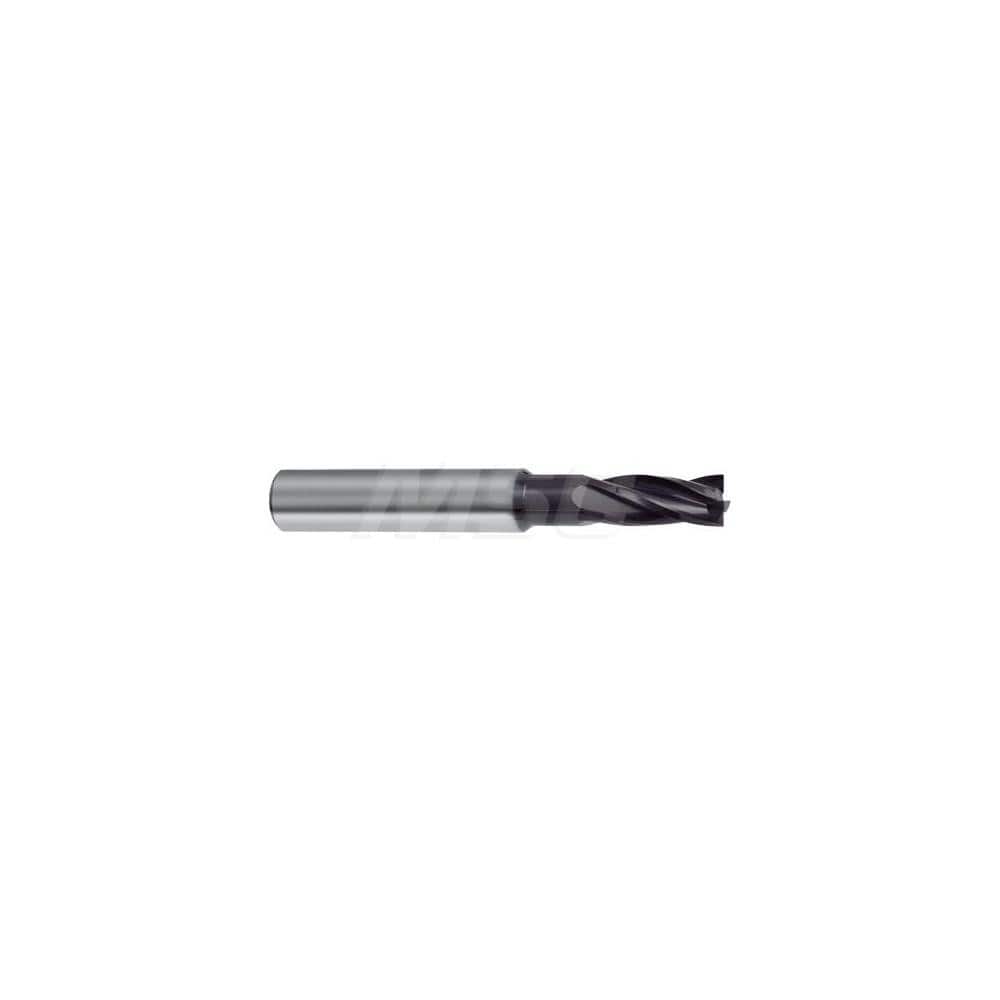

Corner Radius End Mill: 4 Flutes, Solid Carbide 30 ° Helix, Super-A Coated, Corner Chamfer End, Centercutting, Series 6716
Item #: 13172523
Brand: Guhring
Model #: 9067160100000
Product Specifications
| Chamfer Width (mm) | 0.100 |
| Mill Diameter (mm) | 10.00 |
| Chamfer Angle | 45.000 |
| Length of Cut (mm) | 22.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| End Type | Corner Chamfer |
| Length Type | Standard |
| Flute Type | Spiral |
| Helix Angle | 30 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (mm) | 12.0000 |
| Reach Length (mm) | 31.00 |
| Overall Length (mm) | 83.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Single Or Double End | Single |
| Coating/Finish | Super-A |
