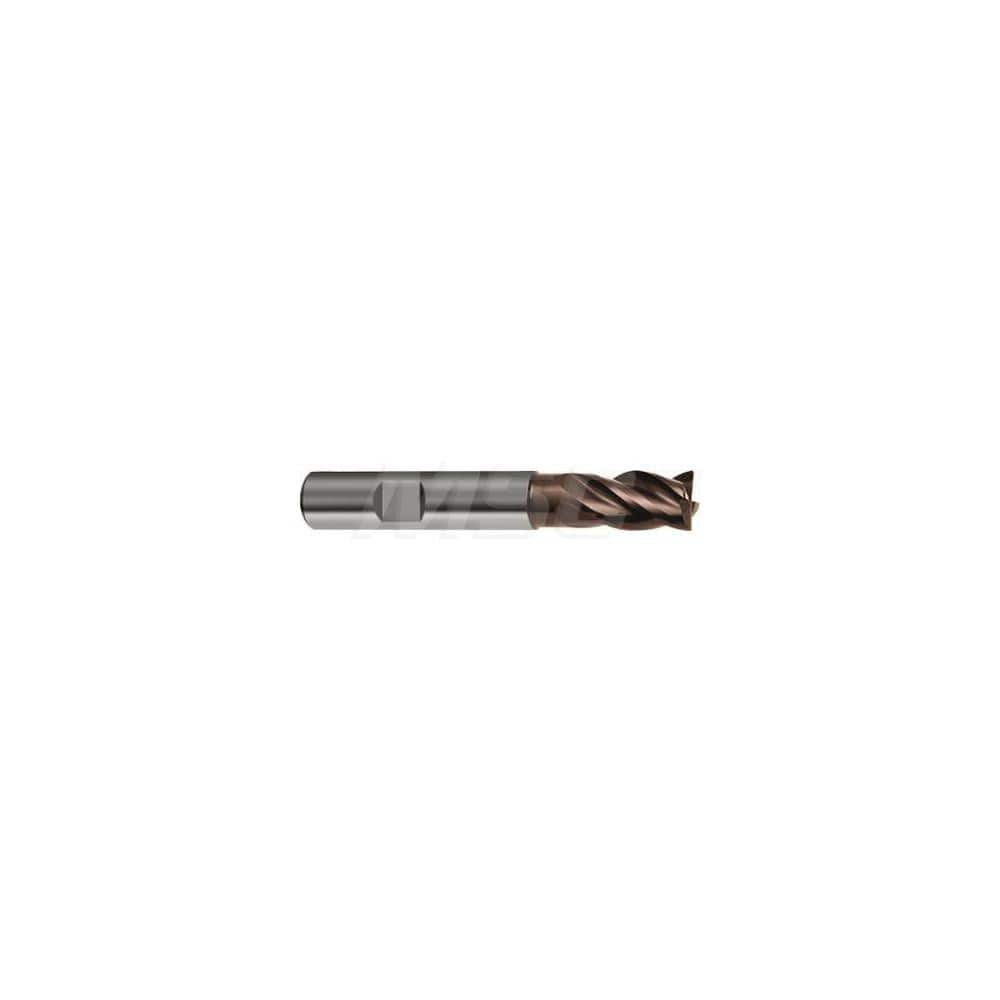

Corner Radius End Mill: 4 Flutes, Solid Carbide 36, 37 & 38 ° Helix, nano-Si Coated, Corner Chamfer End, Centercutting, Series 6804
Item #: 13172457
Brand: Guhring
Model #: 9068040100000
Product Specifications
| Chamfer Width (mm) | 0.100 |
| Mill Diameter (mm) | 10.00 |
| Chamfer Angle | 45.000 |
| Length of Cut (mm) | 14.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| End Type | Corner Chamfer |
| Length Type | Short |
| Flute Type | Spiral |
| Helix Angle | 36; 37; 38 |
| Shank Type | Weldon |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | Yes |
| Shank Diameter (mm) | 10.0000 |
| Reach Length (mm) | 24.00 |
| Overall Length (mm) | 66.00 |
| Minimum Helix Angle | 36.00 |
| Maximum Helix Angle | 38.00 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Single Or Double End | Single |
| Coating/Finish | nano-Si |
