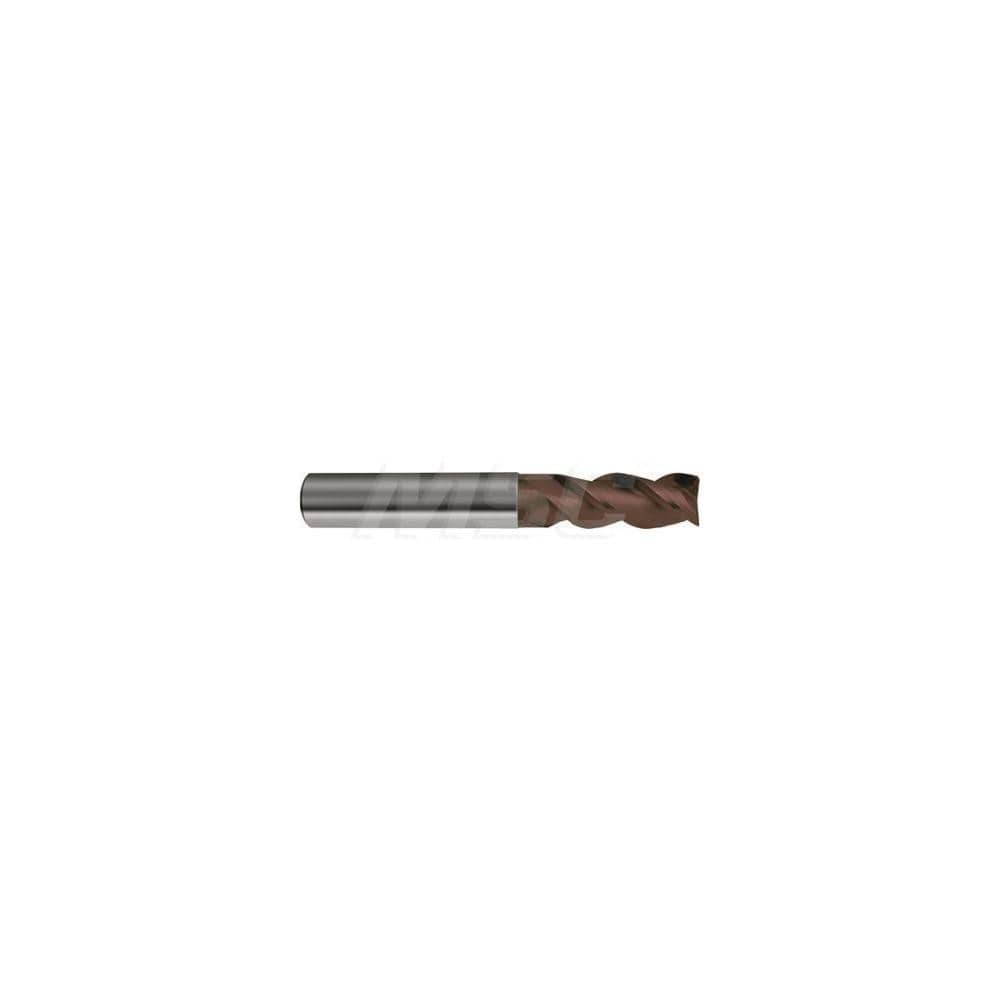

Corner Radius End Mill: 3 Flutes, Solid Carbide 41, 43 & 45 ° Helix, nano-Si Coated, Corner Chamfer End, Centercutting, Series 6797
Item #: 13172077
Brand: Guhring
Model #: 9067970100000
Product Specifications
| Chamfer Width (mm) | 0.150 |
| Mill Diameter (mm) | 10.00 |
| Chamfer Angle | 45.000 |
| Length of Cut (mm) | 26.00 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| End Type | Corner Chamfer |
| Length Type | Standard |
| Flute Type | Spiral |
| Helix Angle | 45; 41; 43 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | Yes |
| Shank Diameter (mm) | 10.0000 |
| Reach Length (mm) | 30.00 |
| Overall Length (mm) | 72.00 |
| Minimum Helix Angle | 41.00 |
| Maximum Helix Angle | 45.00 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Single Or Double End | Single |
| Coating/Finish | nano-Si |
