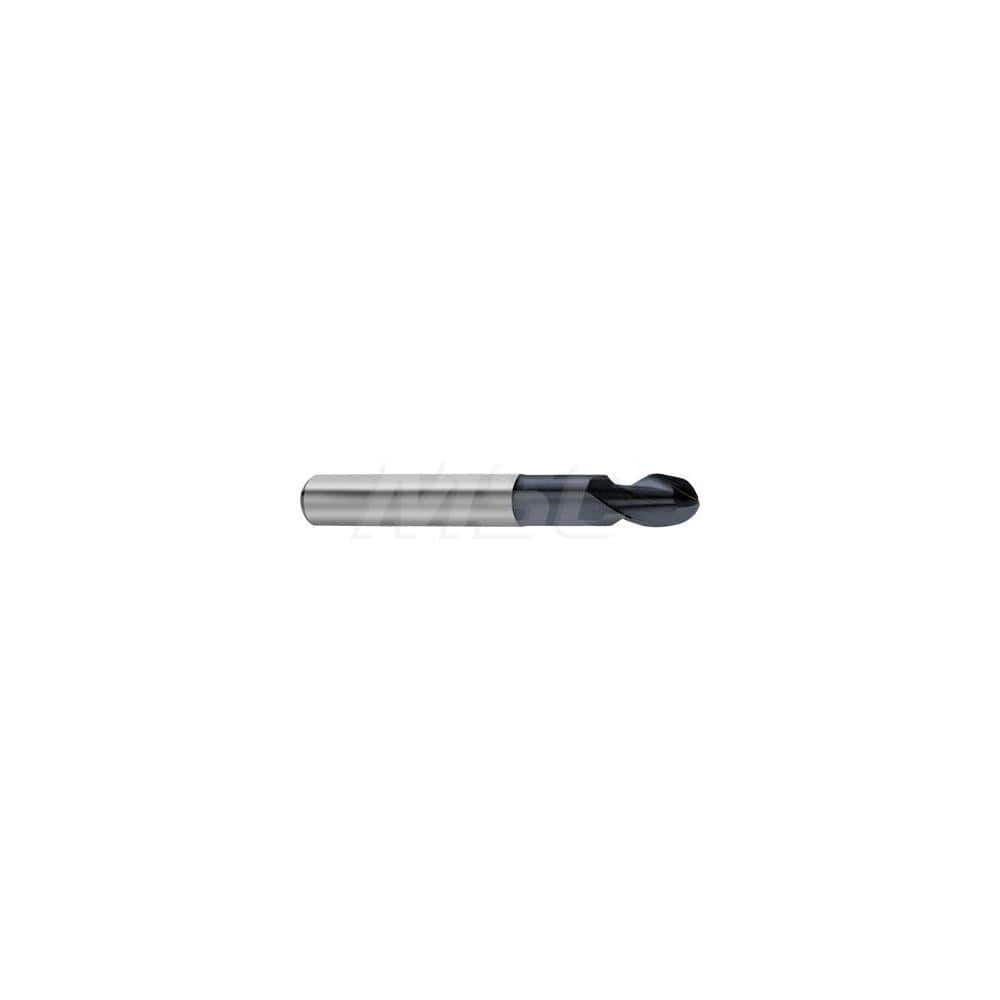

Corner Radius End Mill: 2 Flutes, Solid Carbide 35 ° Helix, Carbo Coated, Ball End, Centercutting, Series 6984
Item #: 13172044
Brand: Guhring
Model #: 9069840100000
Product Specifications
| Mill Diameter (mm) | 10.00 |
| Corner Radius (mm) | 5.00 |
| Length of Cut (mm) | 11.00 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| End Type | Ball End |
| Length Type | Long |
| Flute Type | Spiral |
| Helix Angle | 35 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (mm) | 10.0000 |
| Reach Length (mm) | 30.00 |
| Overall Length (mm) | 72.0000 |
| Corner Radius Tolerance | +0.02000 to -0.02000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Single Or Double End | Single |
| Coating/Finish | Carbo |
