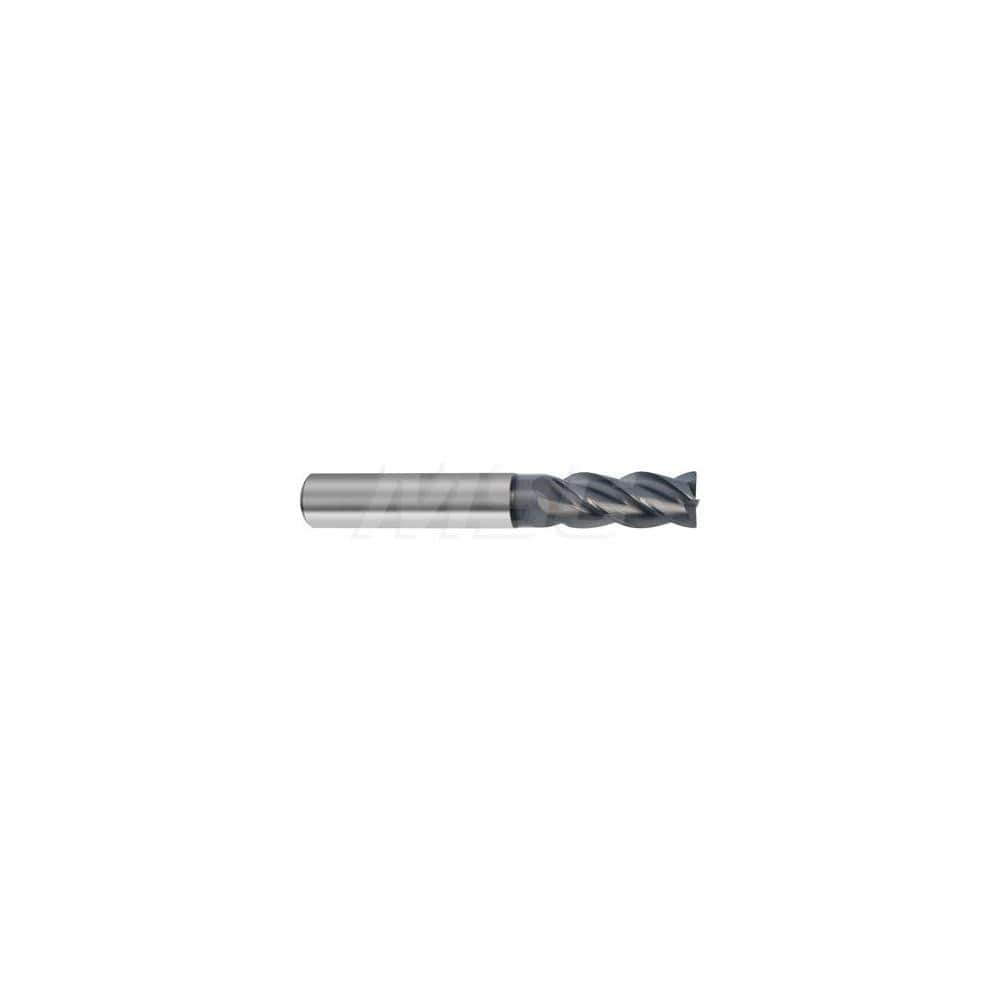

Corner Radius End Mill: 4 Flutes, Solid Carbide 38 & 40 ° Helix, AlCrN Coated, Corner Radius End, Centercutting, Series 6962
Item #: 13171582
Brand: Guhring
Model #: 9069620100200
Product Specifications
| Mill Diameter (mm) | 10.00 |
| Corner Radius (mm) | 2.00 |
| Length of Cut (mm) | 22.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| End Type | Corner Radius |
| Length Type | Standard |
| Flute Type | Helical |
| Helix Angle | 38; 40 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | Yes |
| Shank Diameter (mm) | 10.0000 |
| Reach Length (mm) | 30.00 |
| Overall Length (mm) | 72.00 |
| Minimum Helix Angle | 38.00 |
| Maximum Helix Angle | 40.00 |
| Corner Radius Tolerance | +0.05000 to -0.05000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Single Or Double End | Single |
| Coating/Finish | AlCrN |
