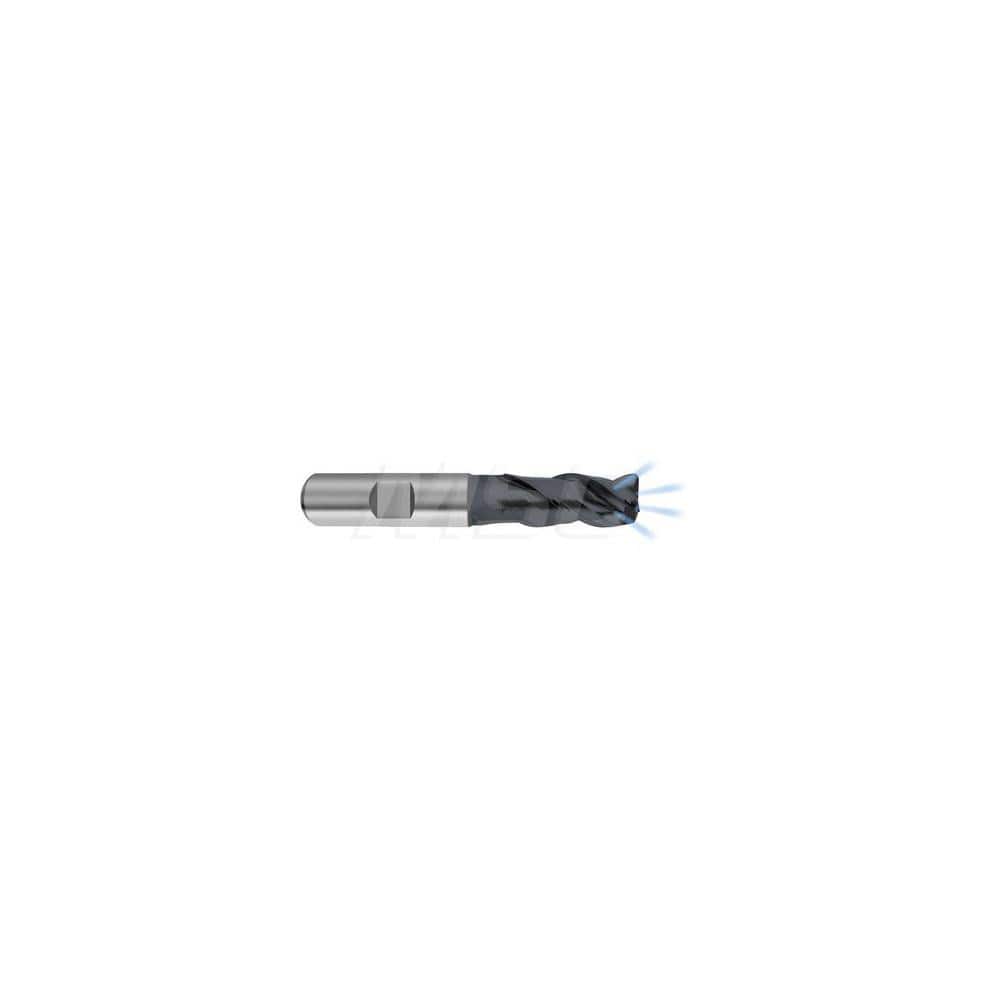

Corner Radius End Mill: 3 Flutes, Solid Carbide 39, 40 & 41 ° Helix, Carbo Coated, Corner Radius End, Centercutting, Series 6983
Item #: 13170972
Brand: Guhring
Model #: 9069830080050
Product Specifications
| Mill Diameter (mm) | 8.00 |
| Corner Radius (mm) | 0.50 |
| Length of Cut (mm) | 19.00 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| End Type | Corner Radius |
| Length Type | Standard |
| Flute Type | Spiral |
| Helix Angle | 39; 40; 41 |
| Shank Type | Weldon |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | Yes |
| Shank Diameter (mm) | 8.0000 |
| Reach Length (mm) | 26.00 |
| Overall Length (mm) | 63.00 |
| Minimum Helix Angle | 39.00 |
| Maximum Helix Angle | 41.00 |
| Corner Radius Tolerance | +0.05000 to -0.05000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Additional Information | Nano Polished Cutting Edges; Radial & Axial Internal Coolant |
| Single Or Double End | Single |
| Coating/Finish | Carbo |
