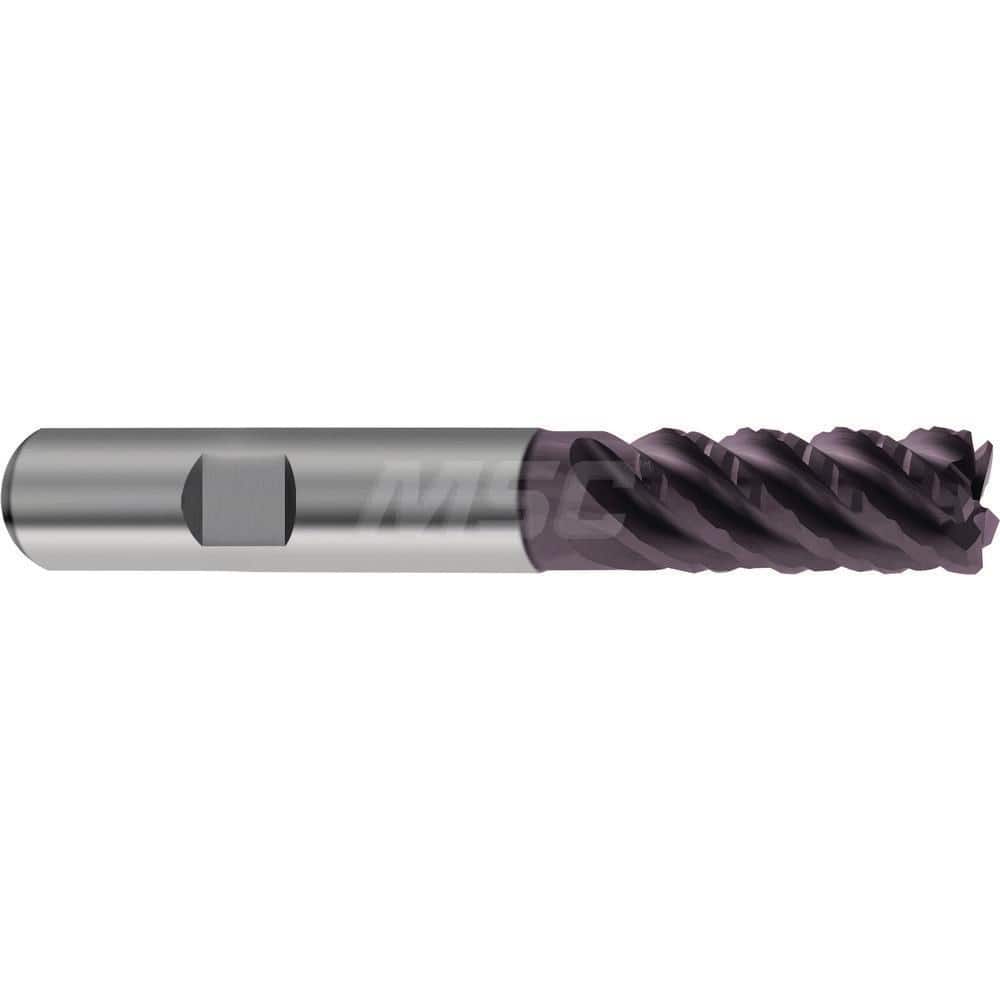

Guhring Roughing End Mill for High Tensile Materials 18.00mm Diameter 18.0mm Shank 32.00mm Length of Cut 92mm Overall
Item #: 13157813
Brand: Guhring
Model #: 9068900180000
Product Specifications
| Mill Diameter (mm) | 18.00 |
| Mill Diameter (Decimal Inch) | 0.7087 |
| Number of Flutes | 6 |
| Pitch | Medium |
| Length of Cut (mm) | 32.0000 |
| Shank Diameter (mm) | 18.0000 |
| Material | Solid Carbide |
| Finish/Coating | FIREX |
| Overall Length (mm) | 92.0000 |
| Centercutting | Yes |
| Helix Angle | 45.00 |
| Extended Reach | Yes |
| Chamfer Width (mm) | 0.500 |
| Variable Helix | No |
| Coolant Induced | No |
| Chamfer Angle | 45.000 |
| Single or Double End | Single; Corner Chamfer |
| Cutting Direction | Right |
| Flute Direction | Right |
| Length Type | Standard |
| Reach Length (mm) | 42.00 |
| Series/List | 6890 |
