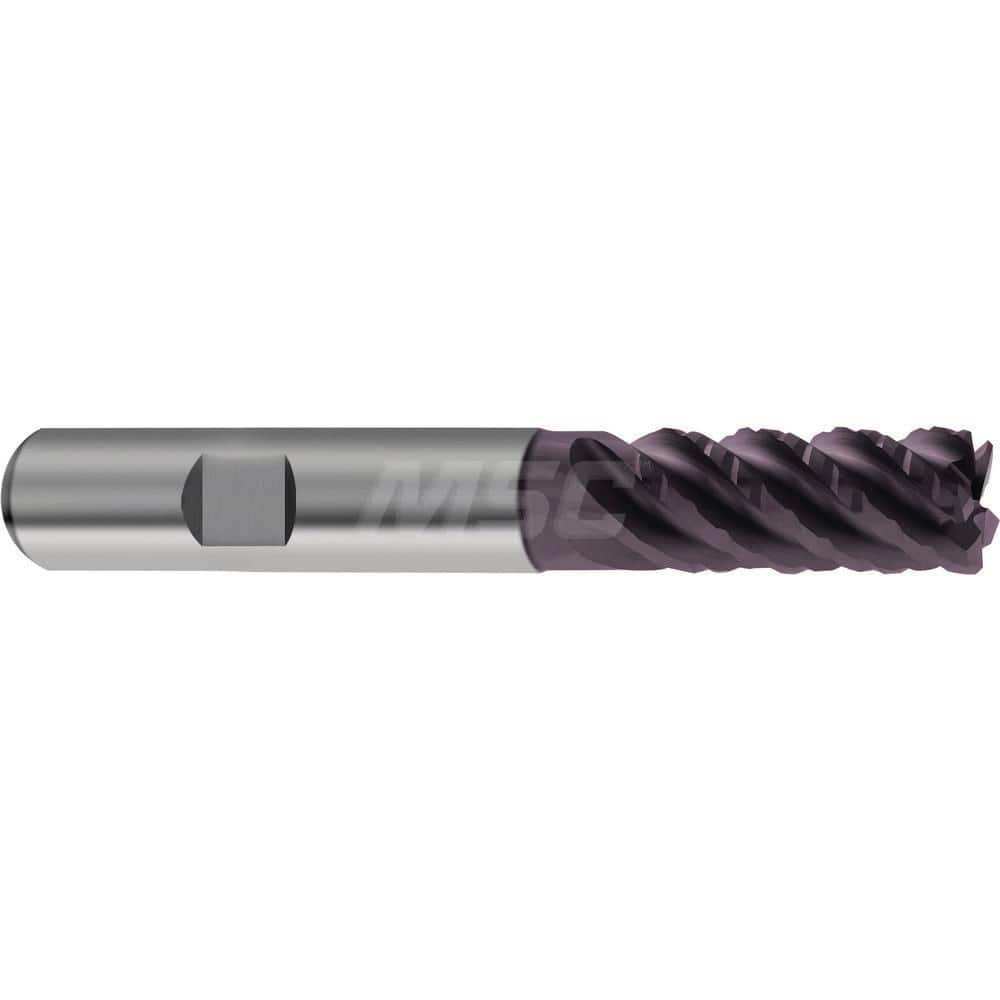

Guhring Roughing End Mill for High Tensile Materials 20.00mm Diameter 20.0mm Shank 38.00mm Length of Cut 104mm Overall
Item #: 13157722
Brand: Guhring
Model #: 9068900200000
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Mill Diameter (Decimal Inch) | 0.7874 |
| Number of Flutes | 6 |
| Pitch | Medium |
| Length of Cut (mm) | 38.0000 |
| Shank Diameter (mm) | 20.0000 |
| Material | Solid Carbide |
| Finish/Coating | FIREX |
| Overall Length (mm) | 104.0000 |
| Centercutting | Yes |
| Helix Angle | 45.00 |
| Extended Reach | Yes |
| Chamfer Width (mm) | 0.500 |
| Variable Helix | No |
| Coolant Induced | No |
| Chamfer Angle | 45.000 |
| Single or Double End | Single; Corner Chamfer |
| Cutting Direction | Right |
| Flute Direction | Right |
| Length Type | Standard |
| Reach Length (mm) | 52.00 |
| Series/List | 6890 |
