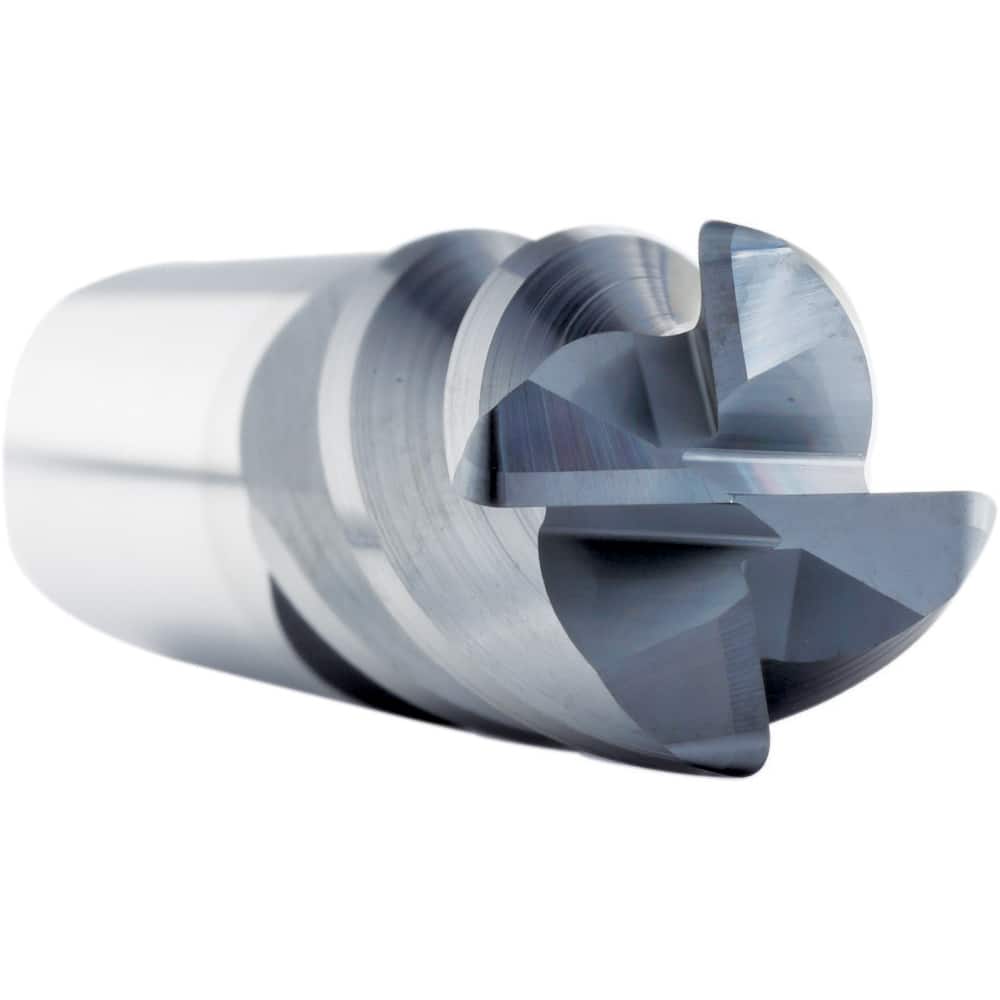

Corner Radius End Mill: 5/16″ Dia, 1/2″ LOC, 0.02″ Radius, 4 Flutes, Solid Carbide 2″ OAL, 5/16″ Shank Dia, 35 ° Helix, AlTiN Coated, Corner Radius End, Centercutting, Series SAP-NB
Item #: 13017629
Brand: Supermill
Model #: SAP312SA-020
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3125 |
| Mill Diameter (Inch) | 5/16 |
| Length of Cut (Inch) | 1/2 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Corner Radius |
| Helix Angle | 35 |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 5/16 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | SAP-NB |
| Single Or Double End | Single |
| Manufacturers Catalog Number | 20561 |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5000 |
