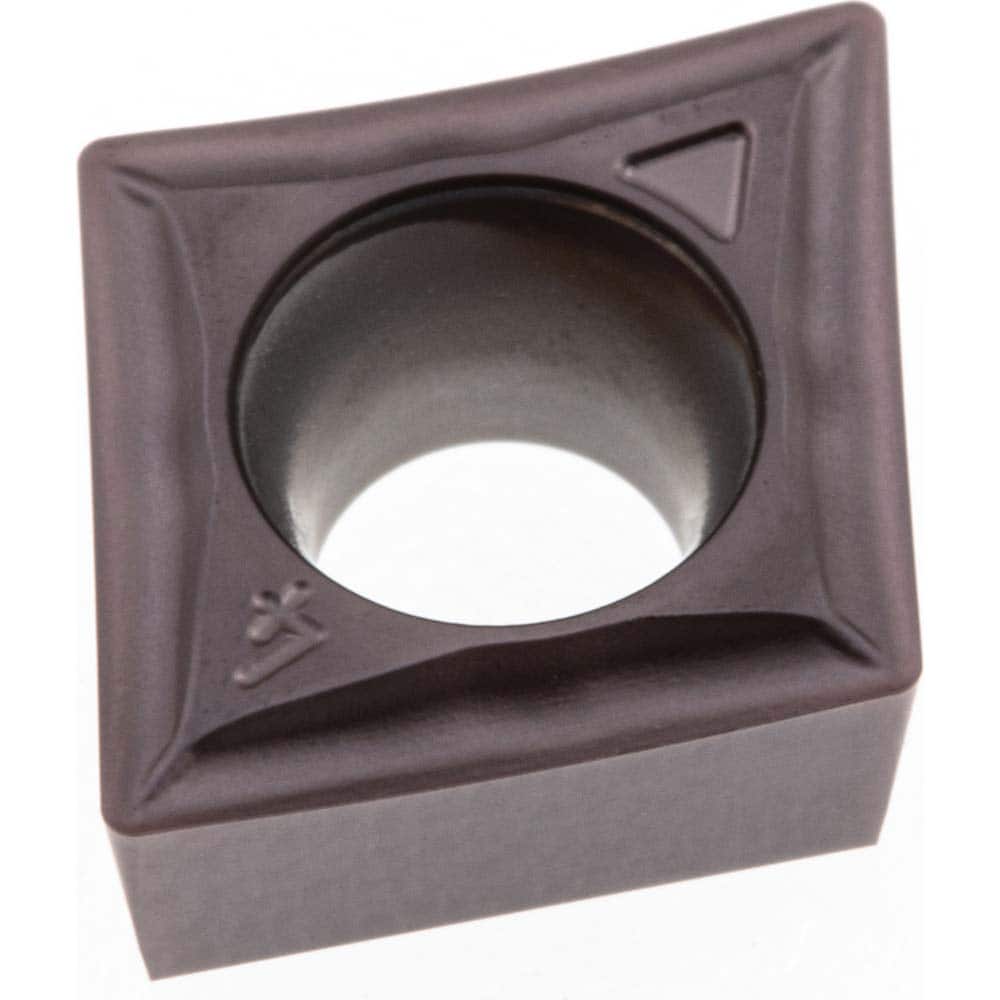

Arno - CCGT32.51AN-ASF AM5020 Carbide Turning Insert
Item #: 12973566
Brand: Arno
Model #: 111931
Product Specifications
| Insert Style | CCGT |
| Insert Size | 32.51 |
| Material | Carbide |
| Width (mm) | 9.53 |
| Length (mm) | 9.67 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (mm) | 3.9700 |
| Manufacturer's Grade | AM5020 |
| Chip Breaker | ASF |
| Insert Length (mm) | 9.67 |
| Hole Diameter (Decimal Inch) | 4.4000 |
| ISO Number | CCGT 09T304EN-ASF AM5020 |
| Rake | Positive |
| Relief Angle | 7.000 |
| Coating Process | PVD |
| Manufacturers Catalog Number | CCGT 09T304EN-ASF |
| Primary Workpiece Material | M |
| Secondary Workpiece Material | P |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Finish/Coating | PVD |
| Corner Radius (mm) | 0.40 |
| Shape | Diamond |
