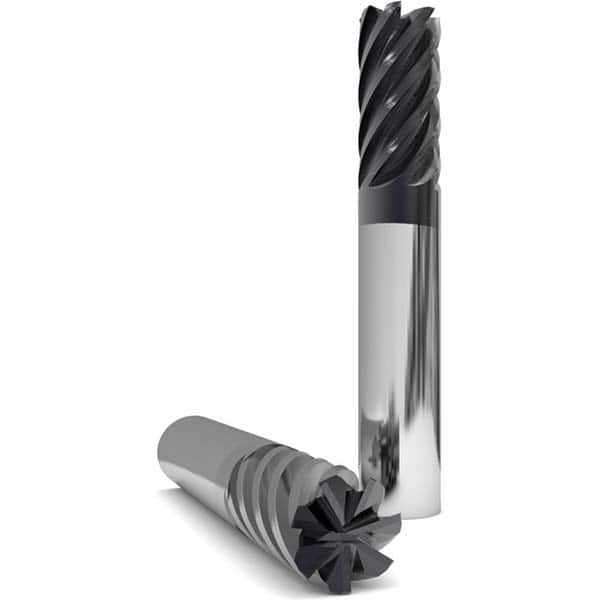

Corner Radius End Mill: 1/2″ Dia, 1-3/4″ LOC, 0.015″ Radius, 7 Flutes, Solid Carbide 4″ OAL, 1/2″ Shank Dia, 38 ° Helix, nACo Coated, Corner Radius End, Centercutting, Series 1035
Item #: 12965141
Brand: GWS
Model #: 122904
Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (mm) | 12.70 |
| Length of Cut (Inch) | 1-3/4 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Length of Cut (mm) | 44.45 |
| Number Of Flutes | 7 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Standard |
| Flute Type | Straight |
| Helix Angle | 38 |
| Shank Type | Standard |
| Centercutting | Yes |
| Shank Diameter (Inch) | 0.5 |
| Overall Length (Inch) | 4 |
| Overall Length (mm) | 101.60 |
| Overall Length (Decimal Inch) | 4.0000 |
| Maximum Helix Angle | 38.00 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Hard Material; Steel |
| Primary Workpiece Material Code | P; H |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | S; K; M |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | 1035 |
| Coating Classification | Uncoated |
| Single Or Double End | Single |
| Coating/Finish | nACo |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.7500 |
