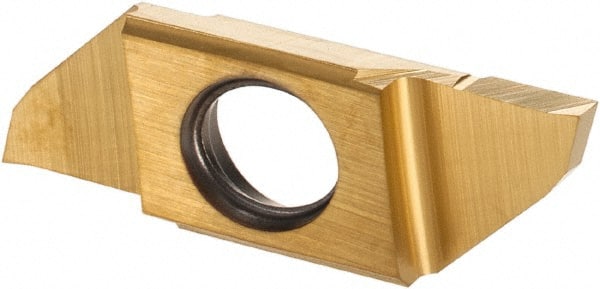

Iscar - 22SCIR Grade IC1008, 1.5mm Cutting Width Carbide Grooving Insert
Item #: 53538591
Brand: Iscar
Model #: 6405417
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCIR |
| Insert Size | 22 |
| Material | Carbide |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0591 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC1008 |
| Coating | TiN/TiAlN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Multi-Use Application | Grooving; Parting; Turning |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Coating Process | PVD |
| Overall Length (mm) | 22.00 |
| Overall Length (Decimal Inch) | 0.8661 |
| Series | Swisscut |
| ISO Number | SCIR 22-150NP05 |
| Manufacturers Catalog Number | SCIR 22-150NP05 |
| Overall Width (mm) | 7.00 |
| Overall Width (Decimal Inch) | 0.2756 |
