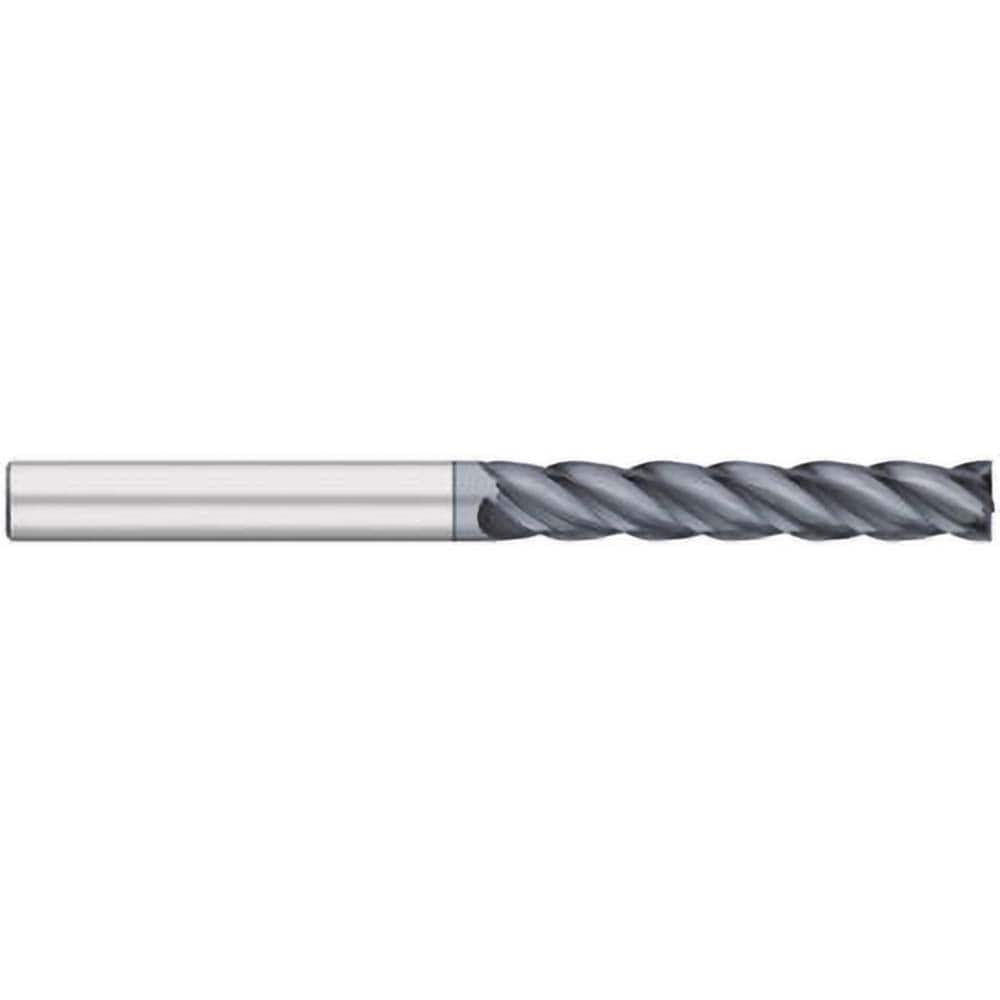

Titan USA - Square End Mills; Mill Diameter (Inch): 1/2 ; Mill Diameter (Decimal Inch): 0.5000 ; Number of Flutes: 4 ; Length of Cut (Inch): 3 ; Length of Cut (Decimal Inch): 3.0000 ; Material: Solid Carbide
Item #: 12640397
Brand: Titan USA
Model #: TC24414
Product Specifications
Square End Mills; Mill Diameter (Inch): 1/2 ; Mill Diameter (Decimal Inch): 0.5000 ; Number of Flutes: 4 ; Length of Cut (Inch): 3 ; Length of Cut (Decimal Inch): 3.0000 ; Material: Solid Carbide
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 3 |
| Length of Cut (Decimal Inch) | 3.0000 |
| Material | Solid Carbide |
| Finish/Coating | AlCrO-MAX |
| Shank Diameter (Inch) | 1/2 |
| Single or Double End | Single |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.00000 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 38 |
| Variable Helix | No |
| Variable Index | Yes |
| Flute Type | Upcut |
