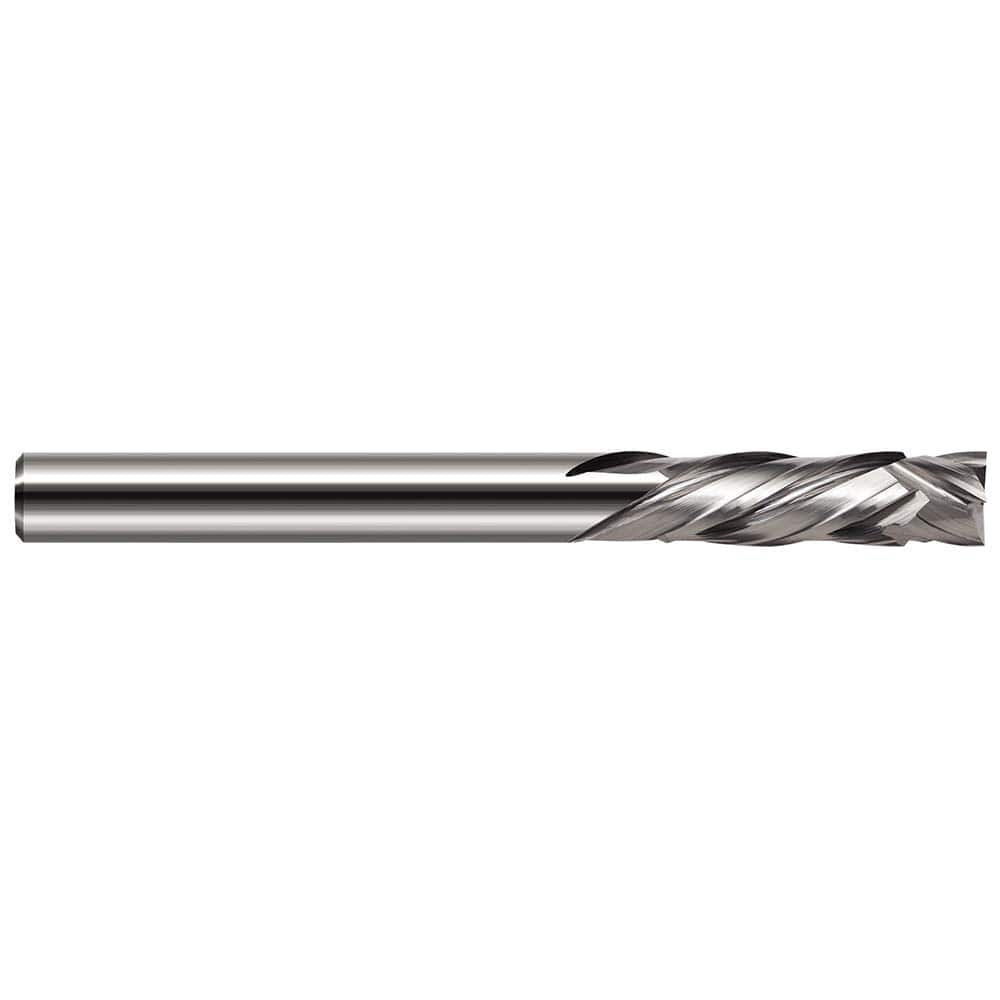

Square End Mill: 1/4'' Dia, 3/4'' LOC, 1/4'' Shank Dia, 2-1/2'' OAL, 2 Flutes, Solid Carbide Single End, Uncoated, Compression Flute, RH Cut, RH Flute
Item #: 12626289
Brand: Harvey Tool
Model #: 994416
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number Of Flutes | 2 |
| Length of Cut (Inch) | 3/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/4 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 2-1/2 |
| Variable Helix | No |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.7000 - 0.8000 |
| Length of Cut (Decimal Inch) | 0.7500 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Flute Type | Compression |
| Helix Style | Medium |
