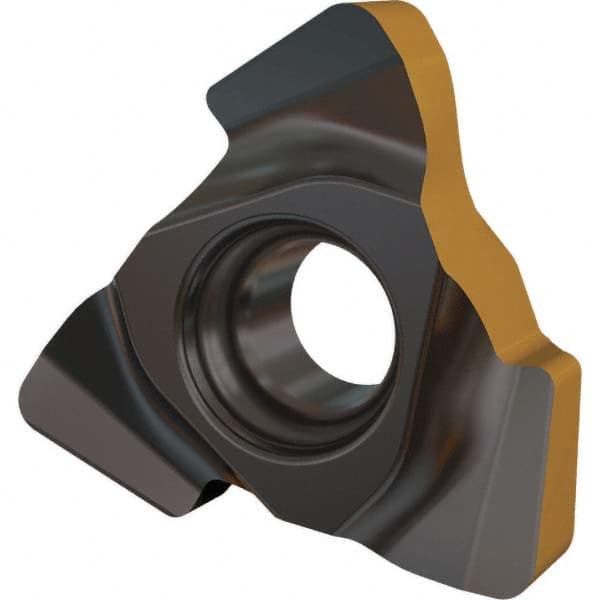

Iscar - TR90TXMT100408 IC830 Carbide Milling Insert
Item #: 12620894
Brand: Iscar
Model #: 3320884
Product Specifications
| Insert Style | TXMT |
| Insert Size | 100408 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Inscribed Circle (mm) | 7.30 |
| Inscribed Circle (Decimal Inch) | 0.2870 |
| Thickness (mm) | 3.90 |
| Thickness (Decimal Inch) | 0.1530 |
| Corner Radius (Decimal Inch) | 0.0314 |
| Corner Radius (mm) | 0.80 |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Cutter Series Compatibility | TR90 |
