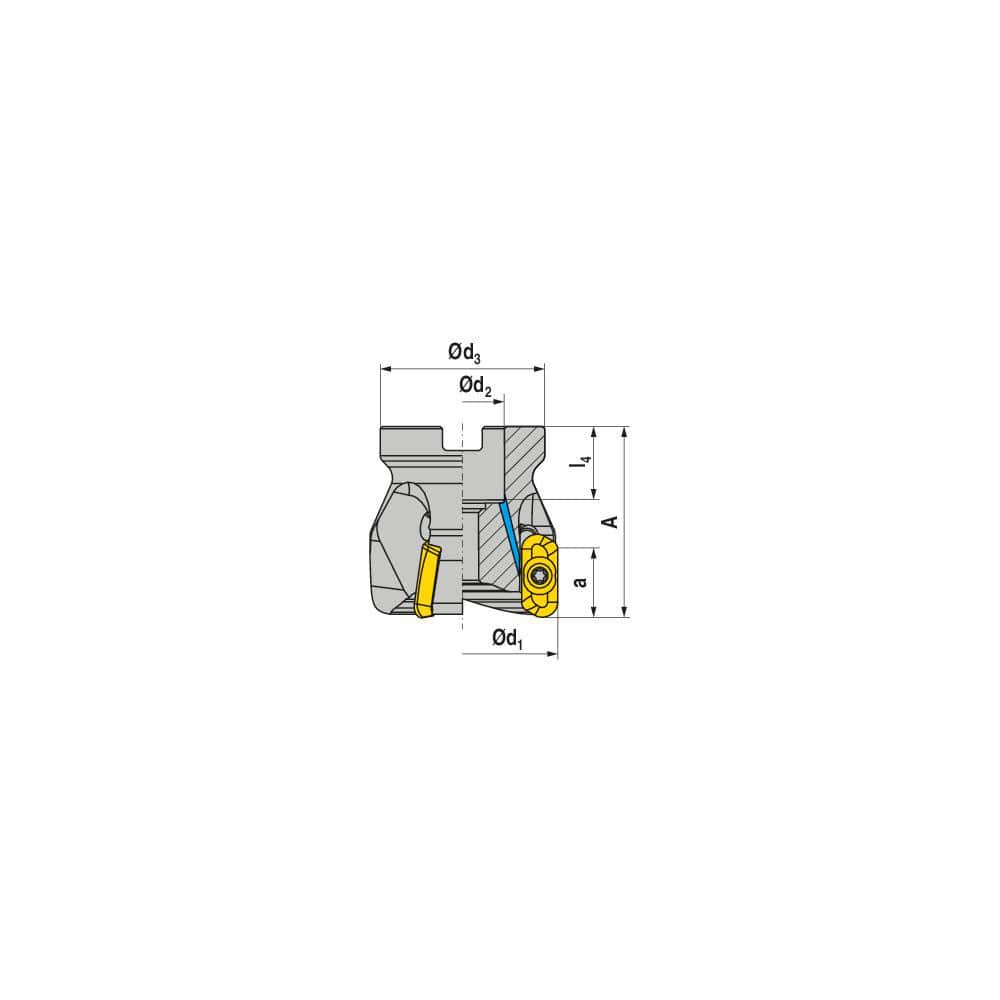

Indexable Square-Shoulder Face Mill: AHSC200R0319A075175EF, 2'' Cut Dia, 0.7500″ Arbor Hole Dia, 0.7090″ Max Cutting Depth Uses 3, XD..1904.. Inserts, Through Coolant, Series AHSC-19
Item #: 12557245
Brand: Ceratizit
Model #: 5871620003
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Minimum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.7090 |
| Arbor Hole Diameter (mm) | 0.75 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | XD..1904.. |
| Maximum Ramping Angle | 4.00 |
| Cutter Style | AHSC |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive (Axial) |
| Series | AHSC-19 |
| Maximum Body Diameter (Decimal Inch) | 2.0000 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Hub Diameter (Inch) | 1-3/4 |
| Maximum RPM | 21600 |
| Tool Application | Facing; Helical Interpolation; Ramping; Slotting; Shouldering |
| Primary Workpiece Material | Non-Ferrous Metal |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 3 |
| Number Of Flutes | 3 |
