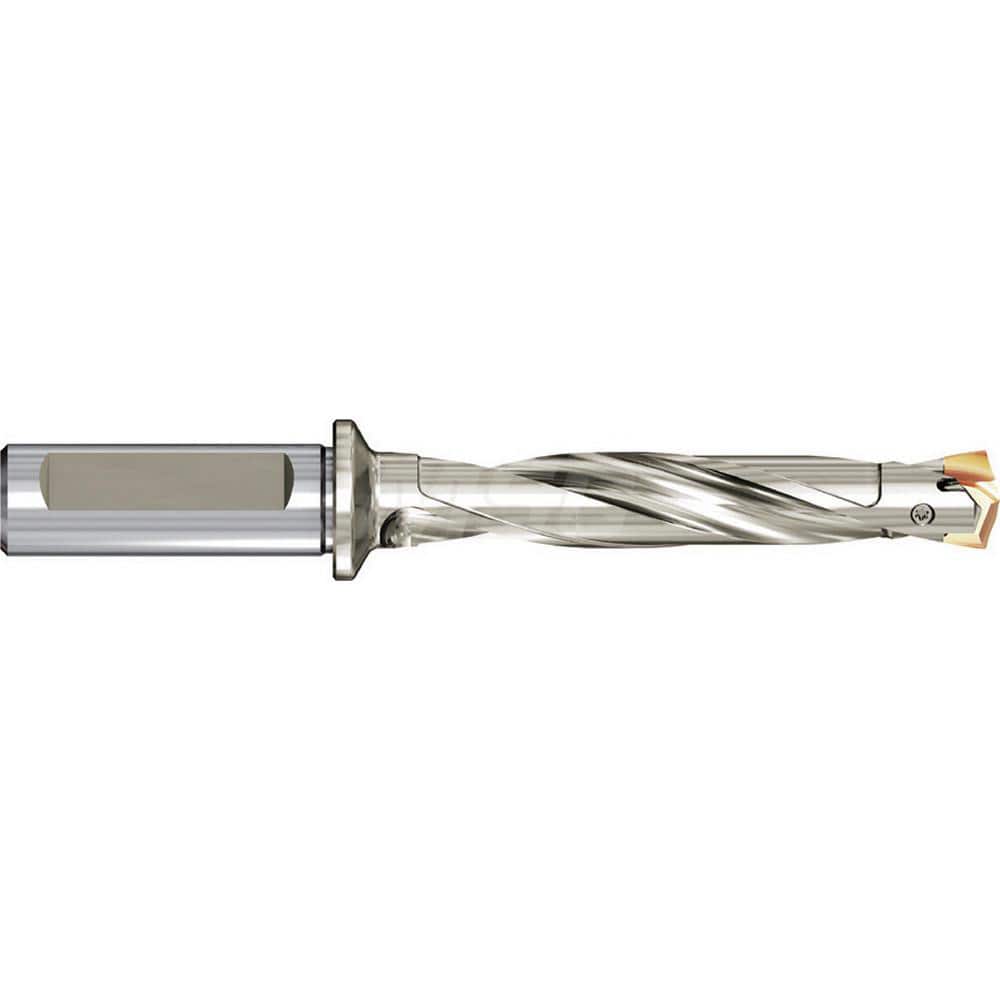

Replaceable Tip Drill: 1.1811 to 1.2189'' Drill Dia, 9.7656″ Max Depth Seat Size 0.3770, Through Coolant
Item #: 12496550
Brand: YG-1
Model #: ZD30008125
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 1.1811 |
| Maximum Drill Diameter (Decimal Inch) | 1.2189 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 9.7656 |
| Insert Style | S30 |
| Shank Diameter (Inch) | 1-1/4 |
| Insert Seat Size | 0.3770 |
| Maximum Drill Depth Range (Decimal Inch) | 8.0000+ |
| Series | ZD30008 |
| Toolholder Style | i-one |
| Coolant Through | Yes |
