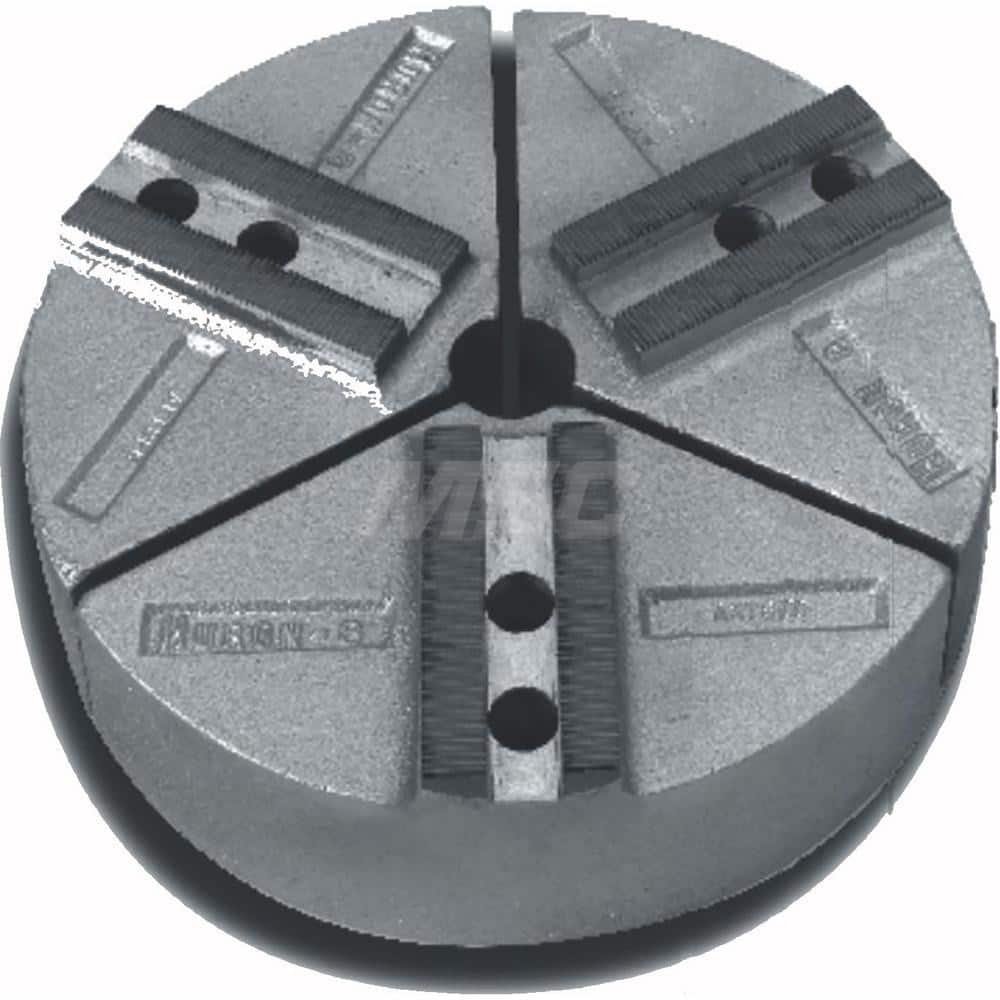

Huron Machine Products - Soft Lathe Chuck Jaws; Jaw Type: Round ; Material: Cast Iron ; Jaw Interface Type: 1.5mm x 60? Serrated ; Maximum Compatible Chuck Diameter (Inch): 6 ; Minimum Compatible Chuck Diameter (Inch): 1 ; Overall Height (Inch): 3
Item #: 12434536
Brand: Huron Machine Products
Model #: CKT6MHFG
Product Specifications
Soft Lathe Chuck Jaws; Jaw Type: Round ; Material: Cast Iron ; Jaw Interface Type: 1.5mm x 60? Serrated ; Maximum Compatible Chuck Diameter (Inch): 6 ; Minimum Compatible Chuck Diameter (Inch): 1 ; Overall Height (Inch): 3
| Jaw Type | Round |
| Material | Cast Iron |
| Jaw Interface Type | 1.5mm x 60? Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 6 |
| Minimum Compatible Chuck Diameter (Inch) | 1 |
| Overall Height (Inch) | 3 |
| Groove Width (Decimal Inch) | 0.4700 |
| Distance Between Mount Hole Centers (Decimal Inch) | 0.5500 |
| Jaw End Shape | Pie |
| Fastener Size (mm) | M10 |
| Number of Jaws | 1 |
| Overall Width/Diameter (Inch) | 6 |
| Overall Length (Inch) | 6 |
