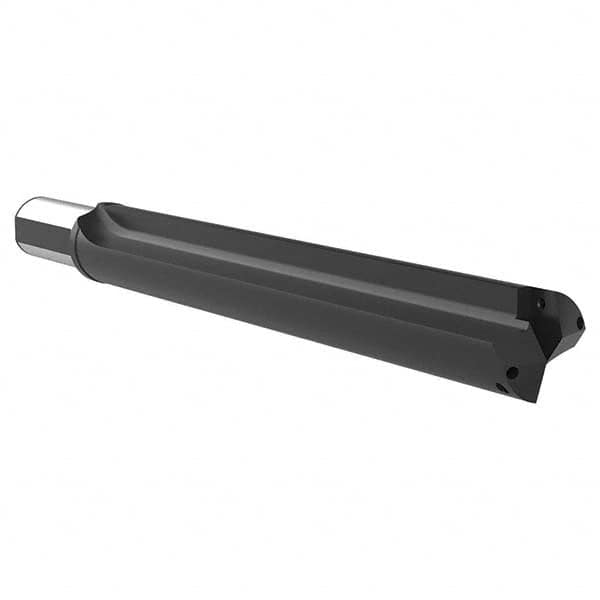

Indexable Spade Drill: 3.001 to 3.507″ Dia, Straight Flute 50 mm Shank Dia, Cylindrical Shank, 508 mm Body Length, 594.4 mm OAL, Through Coolant
Item #: 12329298
Brand: Allied Machine and Engineering
Model #: 25050S-50FM
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 3.0010 |
| Minimum Drill Diameter (mm) | 76.22 |
| Maximum Drill Diameter (mm) | 89.08 |
| Maximum Drill Diameter (Decimal Inch) | 3.5070 |
| Maximum Drill Depth (mm) | 464.00 |
| Spade Drill Length | Extended |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 50.00 |
| Overall Length (mm) | 594.40 |
| Flute Type | Straight |
| Body Length | 508.00 |
| Shank Length (mm) | 80.00 |
| Coolant Hole Thread Size | 1/2 |
| Coolant Hole Thread Type | NPT |
| Coolant Through | Yes |
