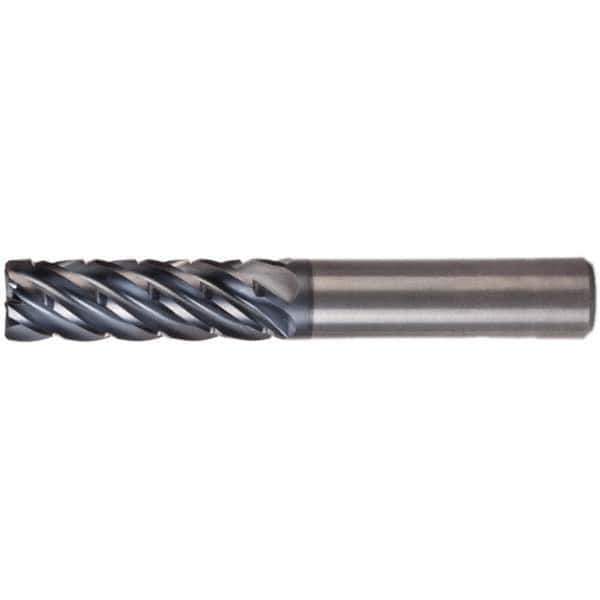

Corner Radius End Mill: 1/2″ Dia, 1-1/2″ LOC, 0.03″ Radius, 6 Flutes, Solid Carbide 3-1/2″ OAL, 1/2″ Shank Dia, 38 ° Helix, AlTiN Coated, Corner Radius End, Centercutting, Series KOR6
Item #: 12258422
Brand: Kennametal
Model #: 6767672
Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (Inch) | 1/2 |
| Length of Cut (Inch) | 1-1/2 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Flutes | 6 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 38 |
| Shank Type | Safe-Lock |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/2 |
| Reach Length (Inch) | 1-1/2 |
| Overall Length (Inch) | 3-1/2 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | KCSM15 |
| Series | KOR6 |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
