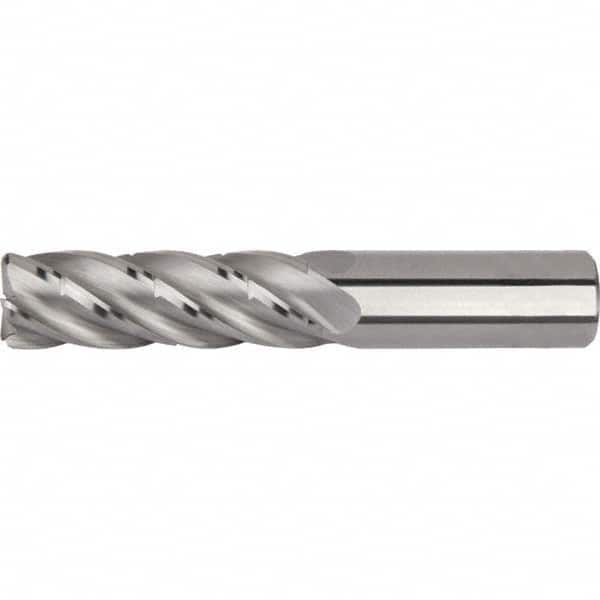

Corner Radius End Mill: 0.3937″ Dia, 5 Flutes, Solid Carbide 35 ° Helix, Bright/Uncoated, Corner Radius End, Series KOR5
Item #: 12257408
Brand: Kennametal
Model #: 6754973
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3937 |
| Mill Diameter (mm) | 10.00 |
| Corner Radius (mm) | 0.20 |
| Length of Cut (mm) | 30.00 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 35 |
| Shank Type | Straight-Cylindrical |
| Centercutting | No |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (mm) | 10.00 |
| Overall Length (mm) | 75.00 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | K600 |
| Series | KOR5 |
| Single Or Double End | Single |
| Coating/Finish | Bright/Uncoated |
