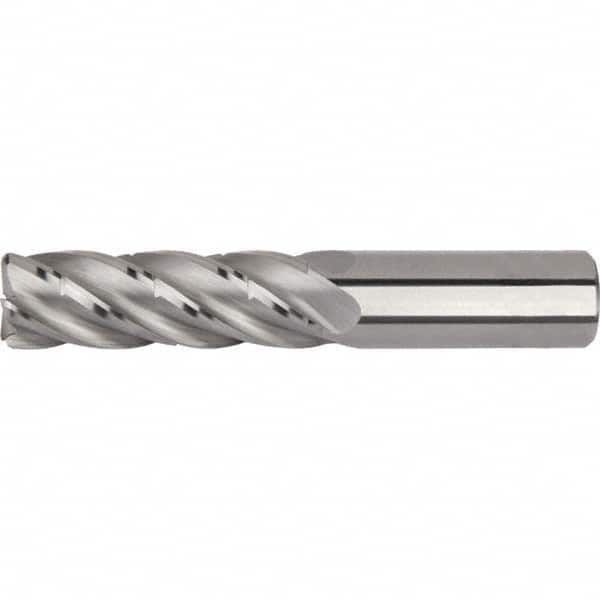

Corner Radius End Mill: 3/8″ Dia, 1-1/8″ LOC, 0.06″ Radius, 5 Flutes, Solid Carbide 3″ OAL, 3/8″ Shank Dia, 35 ° Helix, Bright/Uncoated, Corner Radius End, Series KOR5
Item #: 12256988
Brand: Kennametal
Model #: 6754922
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3750 |
| Mill Diameter (Inch) | 3/8 |
| Length of Cut (Inch) | 1-1/8 |
| Corner Radius (Decimal Inch) | 0.0600 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 35 |
| Shank Type | Straight-Cylindrical |
| Centercutting | No |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | K600 |
| Series | KOR5 |
| Single Or Double End | Single |
| Coating/Finish | Bright/Uncoated |
