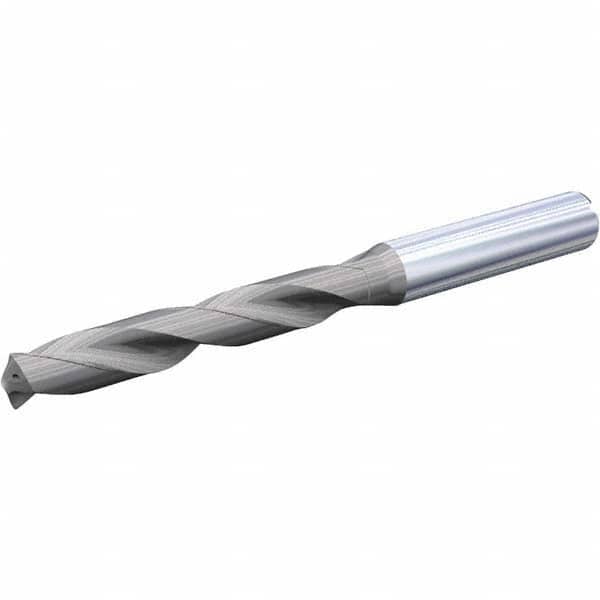

Screw Machine Length Drill Bit: 0.2031″ Dia, 140 °, Solid Carbide AlTiN & TiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series HPX
Item #: 12252037
Brand: Kennametal
Model #: 6781627
Product Specifications
| Drill Bit Size (Inch) | 13/64 |
| Drill Bit Size (mm) | 5.16 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | AlTiN; TiN |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Drill Bit Size (Decimal Inch) | 0.2031 |
| Drill Tip Finish/Coating | AlTiN; TiN |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Shank Diameter (mm) | 6.00 |
| Series | HPX |
| Maximum Drilling Depth (mm) | 20.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Drill Point Length (mm) | 1.14 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (mm) | 28.00 |
| Drill Bit Grade | KCP15B |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Drill Bit Size Range (mm) | 5.00 to 6.50 |
| Material Grade | KCP15B |
