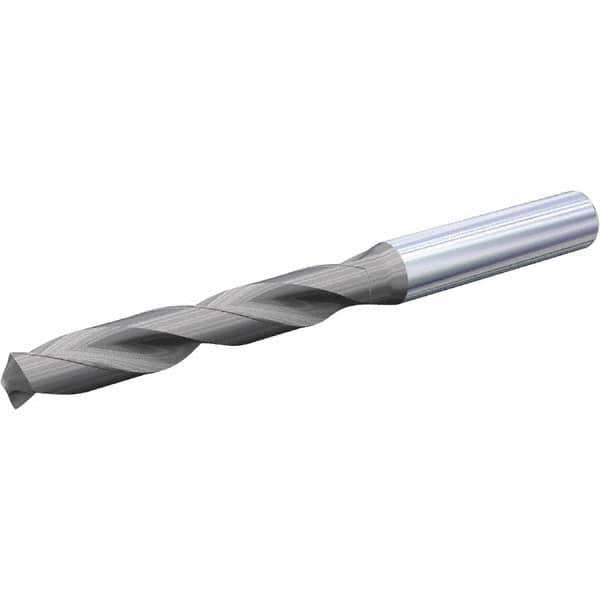

Screw Machine Length Drill Bit: 0.4134″ Dia, 140 °, Solid Carbide AlTiN & TiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series HPX
Item #: 12251302
Brand: Kennametal
Model #: 6781375
Product Specifications
| Drill Bit Size (mm) | 10.50 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | AlTiN; TiN |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Drill Bit Size (Decimal Inch) | 0.4134 |
| Drill Tip Finish/Coating | AlTiN; TiN |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0157 |
| Shank Diameter (mm) | 12.00 |
| Series | HPX |
| Maximum Drilling Depth (mm) | 40.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 45.00 |
| Drill Point Length (mm) | 2.22 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (mm) | 55.00 |
| Drill Bit Grade | KCP15B |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| Drill Bit Size Range (mm) | 9.50 to 11.00 |
| Material Grade | KCP15B |
