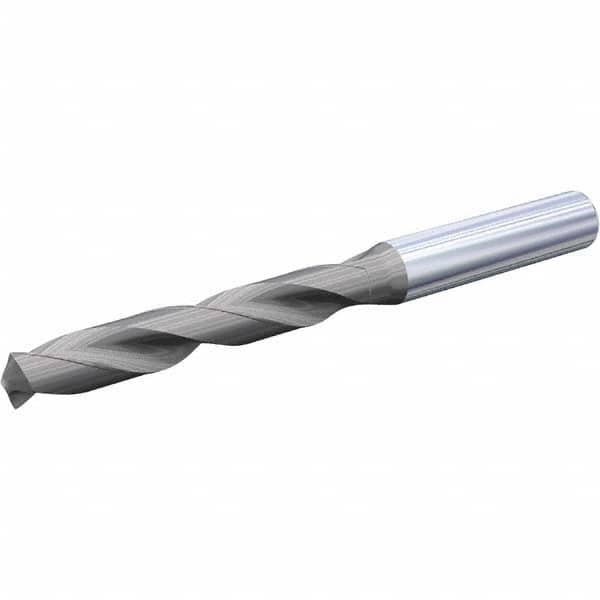

Screw Machine Length Drill Bit: 0.122″ Dia, 140 °, Solid Carbide AlTiN & TiN Finish, Right Hand Cut, Helical & Spiral Flute, Straight-Cylindrical Shank, Series HPX
Item #: 12250684
Brand: Kennametal
Model #: 6781122
Product Specifications
| Drill Bit Size (mm) | 3.10 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | AlTiN; TiN |
| Drill Point Angle | 140 |
| Flute Type | Helical; Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Drill Bit Size (Decimal Inch) | 0.1220 |
| Drill Tip Finish/Coating | AlTiN; TiN |
| Overall Length (mm) | 62.00 |
| Overall Length (Decimal Inch) | 2.4409 |
| Shank Diameter (mm) | 6.00 |
| Series | HPX |
| Maximum Drilling Depth (mm) | 14.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Drill Point Length (mm) | 0.71 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (mm) | 20.00 |
| Drill Bit Grade | KCP15B |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| Drill Bit Size Range (mm) | 0.00 to 3.50 |
| Material Grade | KCP15B |
