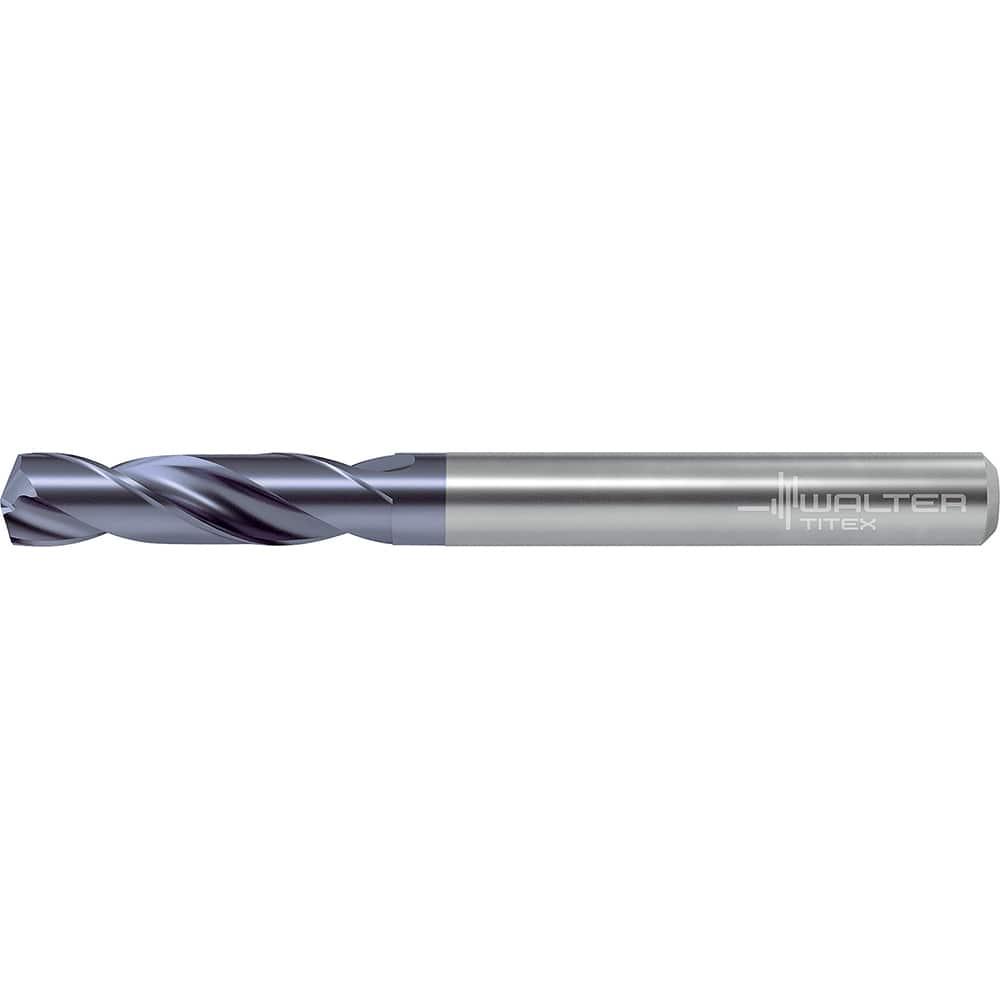

Screw Machine Length Drill Bit: 0.0591″ Dia, 140 °, Solid Carbide Coated, Right Hand Cut, Straight-Cylindrical Shank, Series DC160-03-F1
Item #: 12246492
Brand: Walter-Titex
Model #: 7781104
Product Specifications
| Drill Bit Size (mm) | 1.50 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.0590 |
| Drill Bit Size (Decimal Inch) | 0.0591 |
| Overall Length (mm) | 32.00 |
| Overall Length (Decimal Inch) | 1.2600 |
| Shank Diameter (mm) | 1.50 |
| Series | DC160-03-F1 |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.2360 |
| Maximum Drilling Depth (mm) | 6.00 |
| Shank Length (Decimal Inch) | 0.8600 |
| Shank Length (mm) | 23.00 |
| Drill Point Length (mm) | 0.27 |
| Drill Point Length (Decimal Inch) | 0.0110 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | Universal Advance |
| Drill Bit Diameter Tolerance | m7 |
| Standards | ISO; DIN |
| Flute Length (Decimal Inch) | 0.3540 |
| Flute Length (mm) | 9.00 |
| Drill Bit Size Range (Decimal Inch) | 0.0000 to 0.1000 |
| Drill Bit Size Range (mm) | 0.00 to 3.50 |
| Material Grade | WJ30RE |
