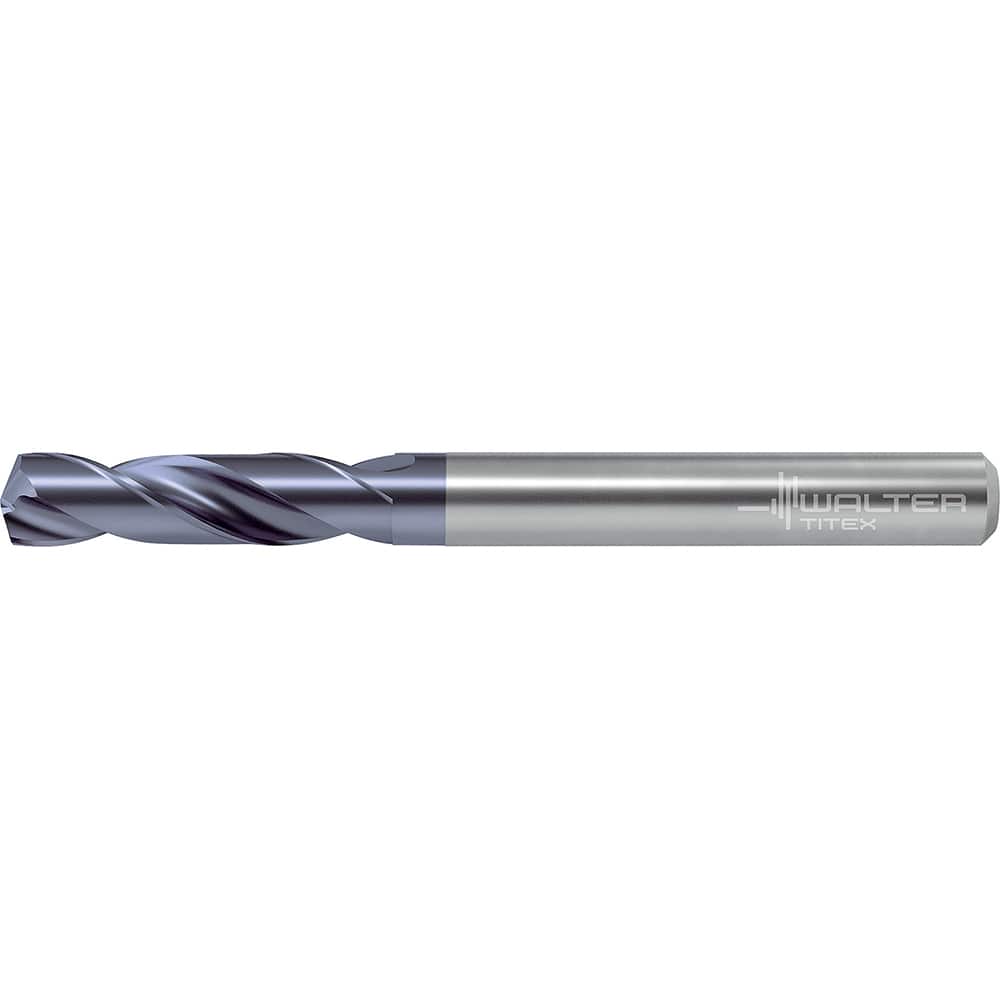

Screw Machine Length Drill Bit: 0.0709″ Dia, 140 °, Solid Carbide Coated, Right Hand Cut, Straight-Cylindrical Shank, Series DC150-03-A0
Item #: 12246484
Brand: Walter-Titex
Model #: 7781108
Product Specifications
| Drill Bit Size (mm) | 1.80 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.0710 |
| Drill Bit Size (Decimal Inch) | 0.0709 |
| Overall Length (mm) | 36.00 |
| Overall Length (Decimal Inch) | 1.4170 |
| Shank Diameter (mm) | 1.80 |
| Series | DC150-03-A0 |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.3150 |
| Maximum Drilling Depth (mm) | 8.00 |
| Shank Length (Decimal Inch) | 1.0200 |
| Shank Length (mm) | 25.00 |
| Drill Point Length (mm) | 0.33 |
| Drill Point Length (Decimal Inch) | 0.0130 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | Universal |
| Drill Bit Diameter Tolerance | m7 |
| Standards | ISO; DIN |
| Flute Length (Decimal Inch) | 0.4330 |
| Flute Length (mm) | 11.00 |
| Drill Bit Size Range (Decimal Inch) | 0.0000 to 0.1000 |
| Drill Bit Size Range (mm) | 0.00 to 3.50 |
| Material Grade | WJ30RE |
