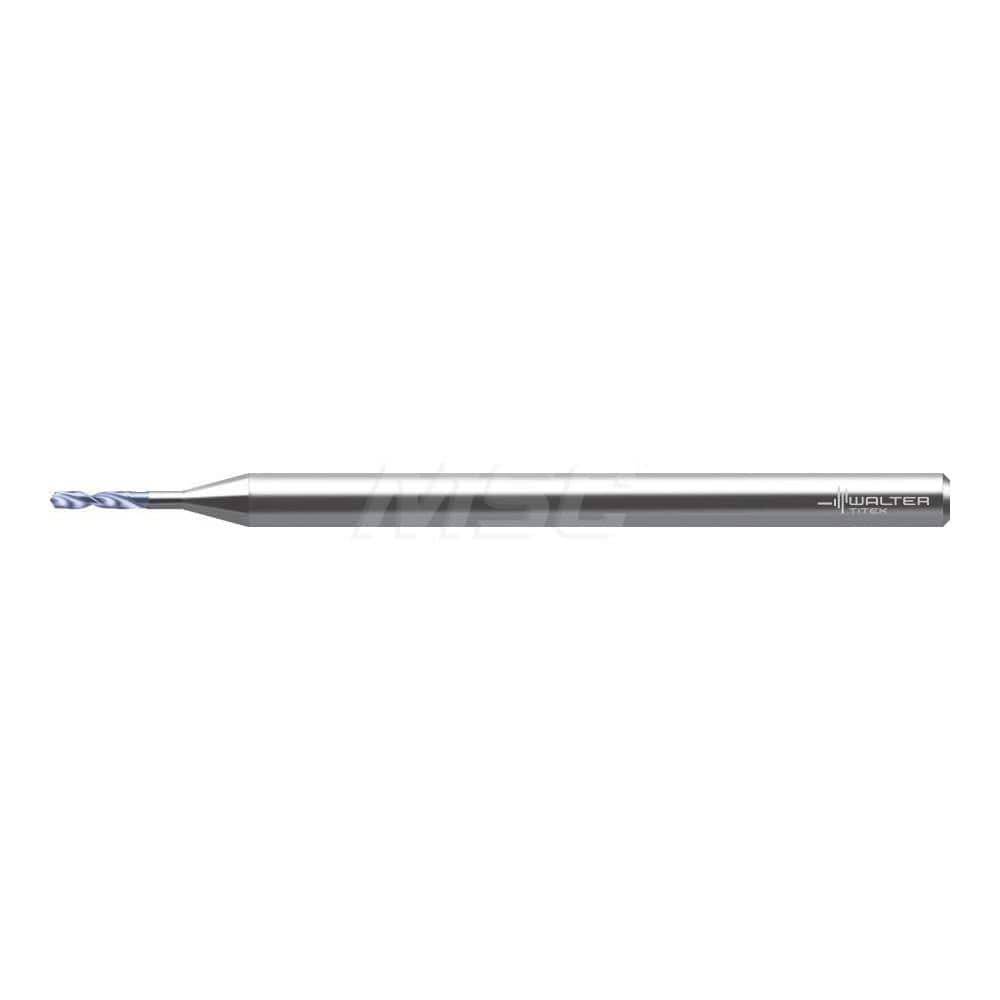

Micro Drill Bit: 0.0469″ Dia, 150 °, Solid Carbide AlCrN Finish, 2.008″ OAL, RH Cut, Straight-Cylindrical Shank, Series DB131-02-A0
Item #: 12243044
Brand: Walter-Titex
Model #: 7650708
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0469 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 6.00 |
| Coating/Finish | AlCrN |
| Coolant Through | No |
| Drill Point Angle | 150 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 4.00 |
| Series | DB131-02-A0 |
| Overall Length (Decimal Inch) | 2.0080 |
| Shank Type | Straight-Cylindrical |
| Tool Application | Through Hole Drilling; Blind Hole; Stack Drilling |
| Drill Bit Diameter Tolerance | p7 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M; N |
| Secondary Workpiece Material | Glass; Graphite; Titanium; Nickel; Cobalt; Titanium Alloy; Iron Alloy |
| Secondary Workpiece Material Code | S; H; O |
| Standards | DIN 6535 HA |
| Shank Diameter (Decimal Inch) | 0.1180 |
| Shank Diameter (mm) | 3.00 |
| Shank Length (mm) | 39.00 |
| Flute By Diameter Ratio | 2xD |
