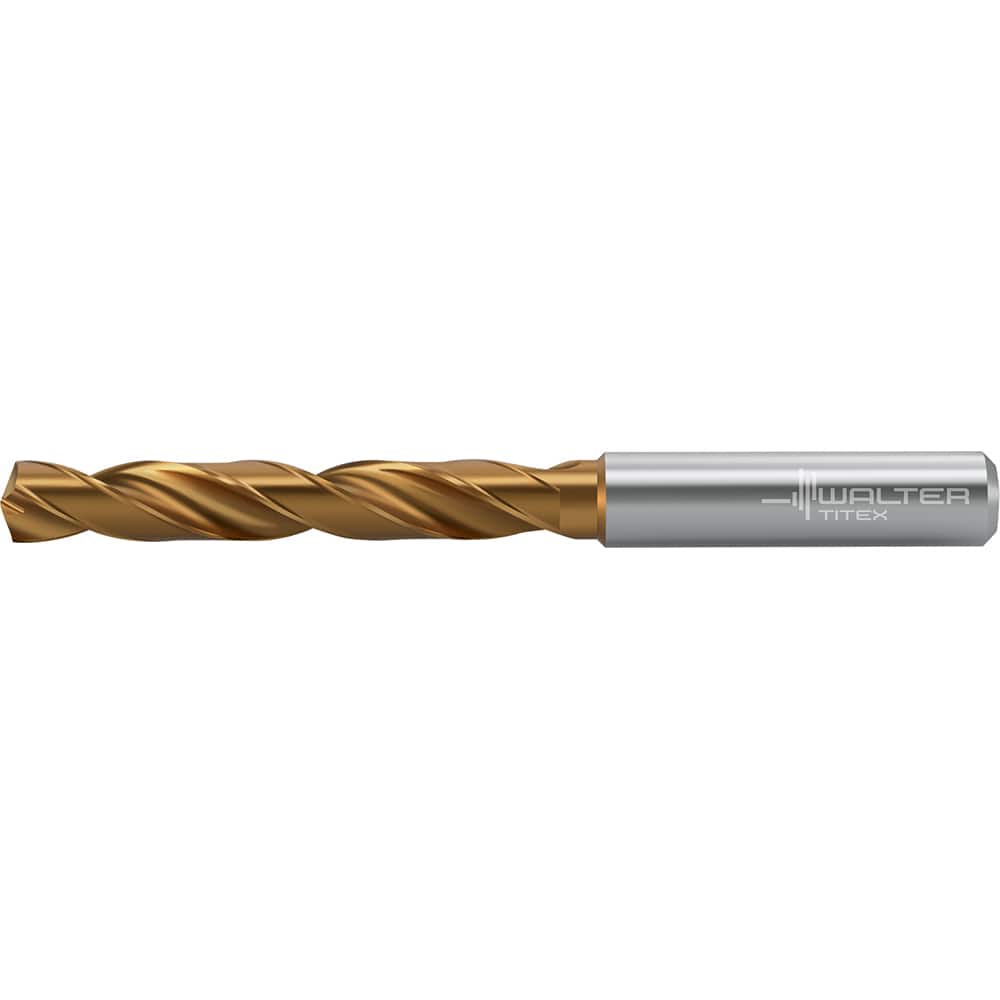

Jobber Length Drill Bit: 0.6024″ Dia, 140 °, Solid Carbide TiSiAlCrN, AlTiN Finish, 5.236″ OAL, Right Hand Cut, Straight-Cylindrical Shank, Series DC160-05-A0
Item #: 12240933
Brand: Walter-Titex
Model #: 7378712
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.6024 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiSiAlCrN/AlTiN |
| Drill Point Angle (Degrees) | 140 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Overall Length (Decimal Inch) | 5.2360 |
| Flute Length (Decimal Inch) | 3.2680 |
| Series | DC160-05-A0 |
| Tool Application | Cross Hole; Blind Hole; Inclined Hole Exit; Stack Drilling |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Maximum Drilling Depth (Decimal Inch) | 2.4800 |
| Shank Length (Decimal Inch) | 1.8900 |
| Drill Point Length (Decimal Inch) | 0.1100 |
| Drill Bit Diameter Tolerance | m7 |
| Standards | ISO; ANSI |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Material Grade | WJ30ET |
