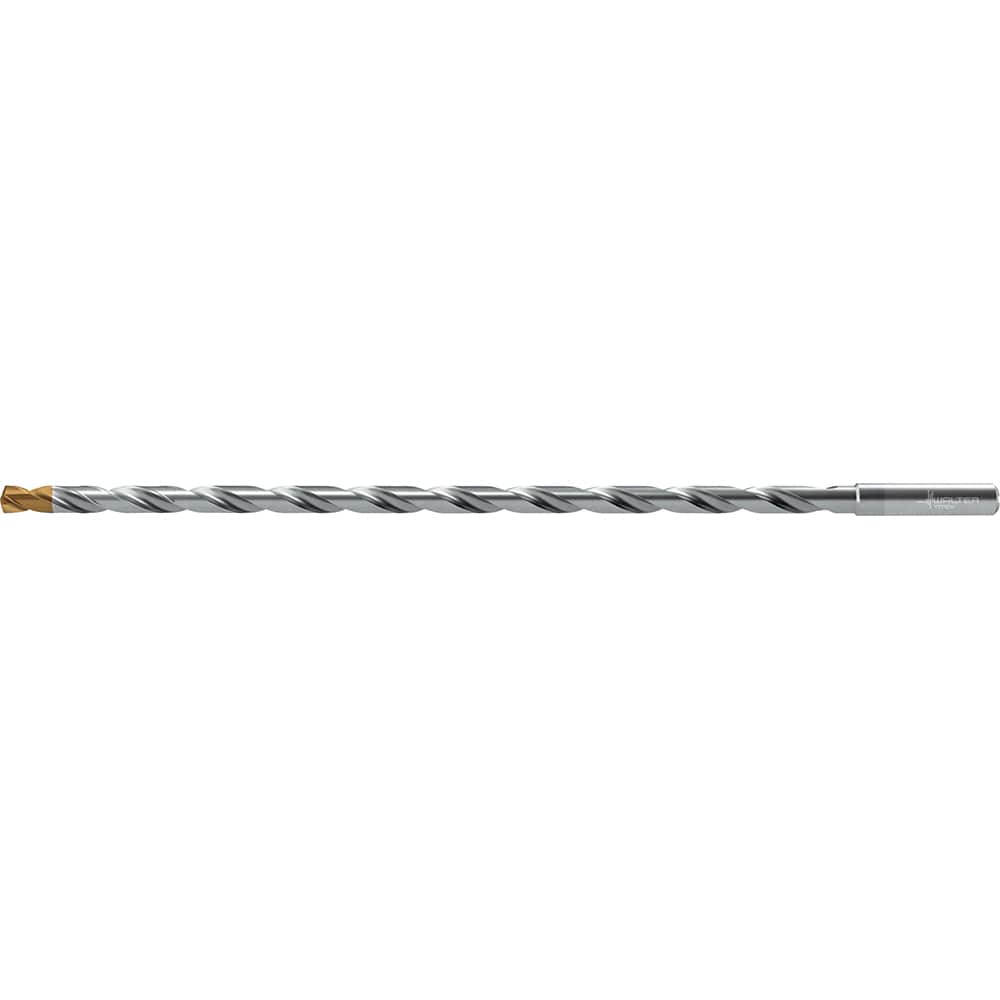

Extra Length Drill Bit: 0.189″ Dia, 140 °, Solid Carbide TiSiAlCrN Finish, 5.709″ Flute Length, 6.969″ OAL, Straight-Cylindrical Shank, Series DC160-25-A1
Item #: 12237905
Brand: Walter-Titex
Model #: 7684342
Product Specifications
| Drill Bit Size (mm) | 4.80 |
| Overall Length (mm) | 177.00 |
| Flute Length (mm) | 145.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiSiAlCrN |
| Drill Point Angle | 140 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Series | DC160-25-A1 |
| Cutting Direction | Right Hand |
| Tool Application | Cross Hole; Blind Hole; Inclined Hole Exit; Stack Drilling |
| Drill Bit Diameter Tolerance | h7 |
| Number Of Flutes | 2 |
| Primary Workpiece Material | Alloy; Titanium Alloy |
| Primary Workpiece Material Code | P; S; K; N |
| Secondary Workpiece Material | Glass; Graphite |
| Secondary Workpiece Material Code | H; M; O |
| Standards | ISO; ANSI |
| Drill Bit Size (Decimal Inch) | 0.1890 |
| Drill Point Length (mm) | 0.87 |
| Drill Point Length (Decimal Inch) | 0.0340 |
| Overall Length (Decimal Inch) | 6.9690 |
| Shank Diameter (Decimal Inch) | 0.1970 |
| Shank Diameter (mm) | 5.00 |
| Shank Length (Decimal Inch) | 1.1020 |
| Shank Length (mm) | 28.00 |
| Flute Length (Decimal Inch) | 5.7090 |
| Flute By Diameter Ratio | 25xD |
| Maximum Drilling Depth (Decimal Inch) | 5.3940 |
| Maximum Drilling Depth (mm) | 137.00 |
