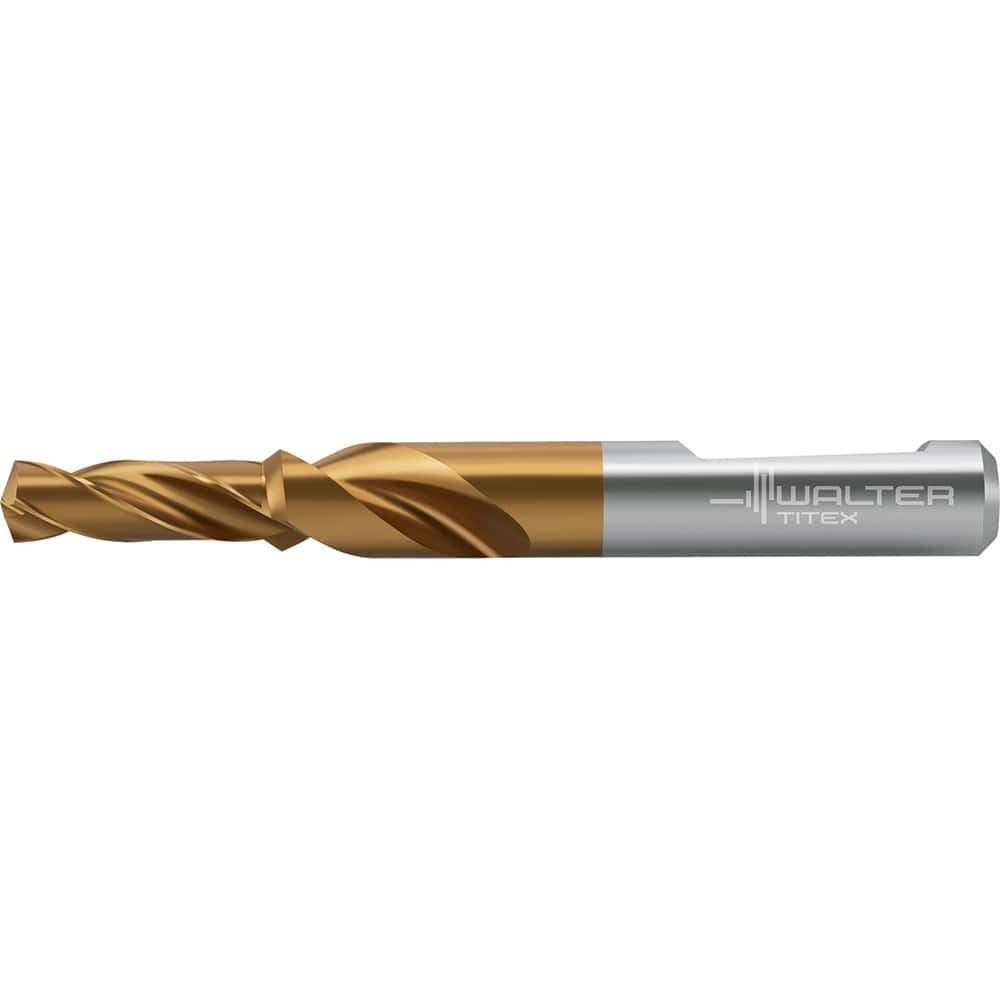

12.5mm Minor 16mm Major 34.5mm Step Length 140° High Performance Solid Carbide Subland Step Drill Bit AlTiN & TiSiAlCrN Finish, 65mm Flute Length, 115mm OAL, Series DC260-03
Item #: 12235842
Brand: Walter-Titex
Model #: 7378956
Product Specifications
| Tool Application | Pre-Tap & Chamfer |
| Cut Tap Thread Size (mm) | M14 x 1.50 |
| Tool Material | Solid Carbide |
| Step Length (Decimal Inch) | 1.3583 |
| Step Length (mm) | 34.50 |
| Minor Diameter (Decimal Inch) | 0.4921 |
| Minor Diameter (mm) | 12.50 |
| Through Coolant | No |
| Coating/Finish | AlTiN; TiSiAlCrN |
| Shank Type | Whistle Notch |
| Shoulder Included Angle | 90 |
| Series | DC260-03 |
| Major Diameter (Decimal Inch) | 0.6299 |
| Major Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Shank Diameter (mm) | 16.00 |
| Drill Point Angle | 140 |
| Flute Length (mm) | 65.00 |
| Shank Length (Decimal Inch) | 1.8900 |
| Tool Performance | High Performance |
| Number Of Flutes | 2 |
| Manufacturers Grade | WJ30ET |
| Drill Bit Diameter Tolerance | M7 |
| Standards | DIN 8378 |
