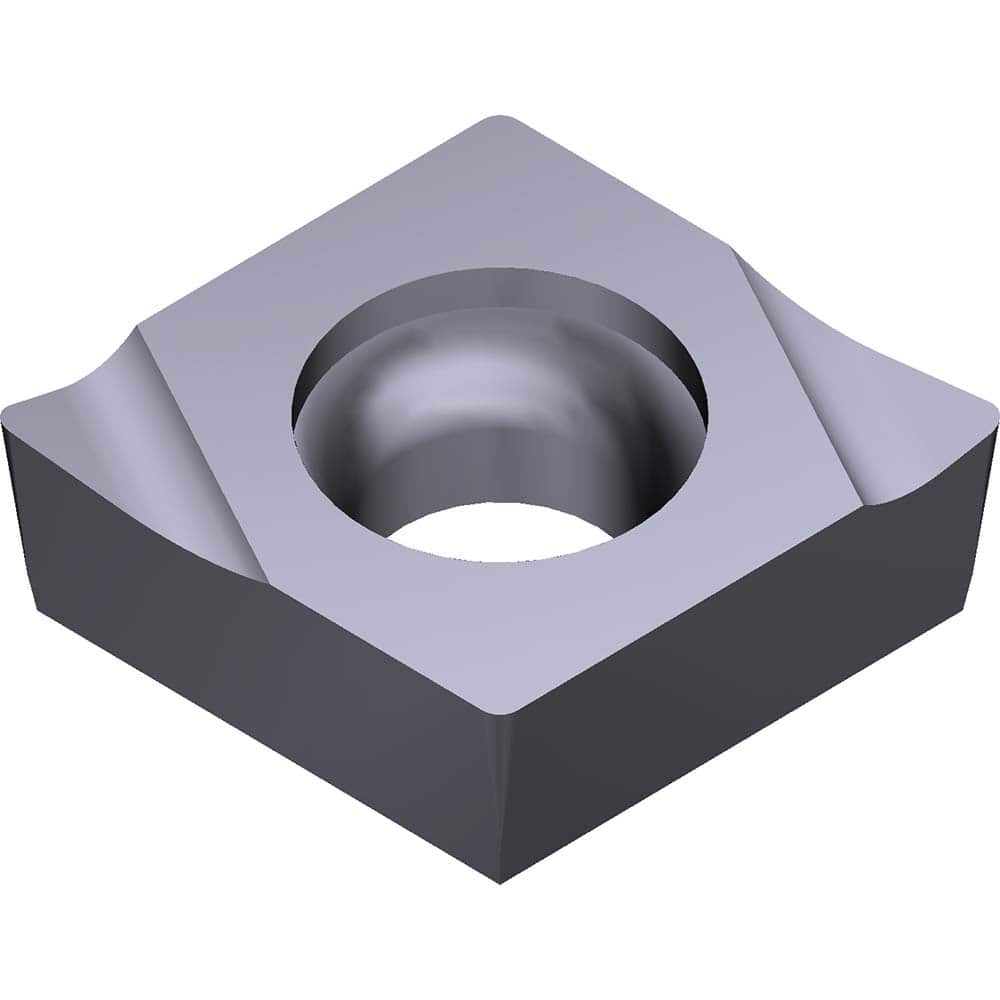

CCGT04X104RFY-AC5015S Carbide Turning Insert Absotech Bronze Finish, 0.1957″ Long, 0.1693″ Inscribed Circle, 0.0157″ Corner Radius, 0.0709″ Thick, 80° Included Angle, Series AC5000S
Item #: 12156212
Brand: Sumitomo
Model #: 10T5ASA
Product Specifications
| Insert Style | CCGT |
| Insert Shape Code | C |
| Insert Size Code | 04X104 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC5015S |
| Hole Diameter (Decimal Inch) | 2.3000 |
| Inscribed Circle (Decimal Inch) | 0.1693 |
| Insert Holding Method | Screw |
| Insert Hand | Right Hand |
| Insert Thickness (Decimal Inch) | 0.0709 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | AC5000S |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Primary Workpiece Material | Powdered Metal |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel |
| Ansi Code | CCGT04X104RFY |
| Iso Code | CCGT04X104R-FY |
| Standards | ISO 13399; ANSI |
| Manufacturers Catalog Number | CCGT04X104RFY-AC5015S |
| Chip Breaker | RFY |
| Coating/Finish | Absotech Bronze |
