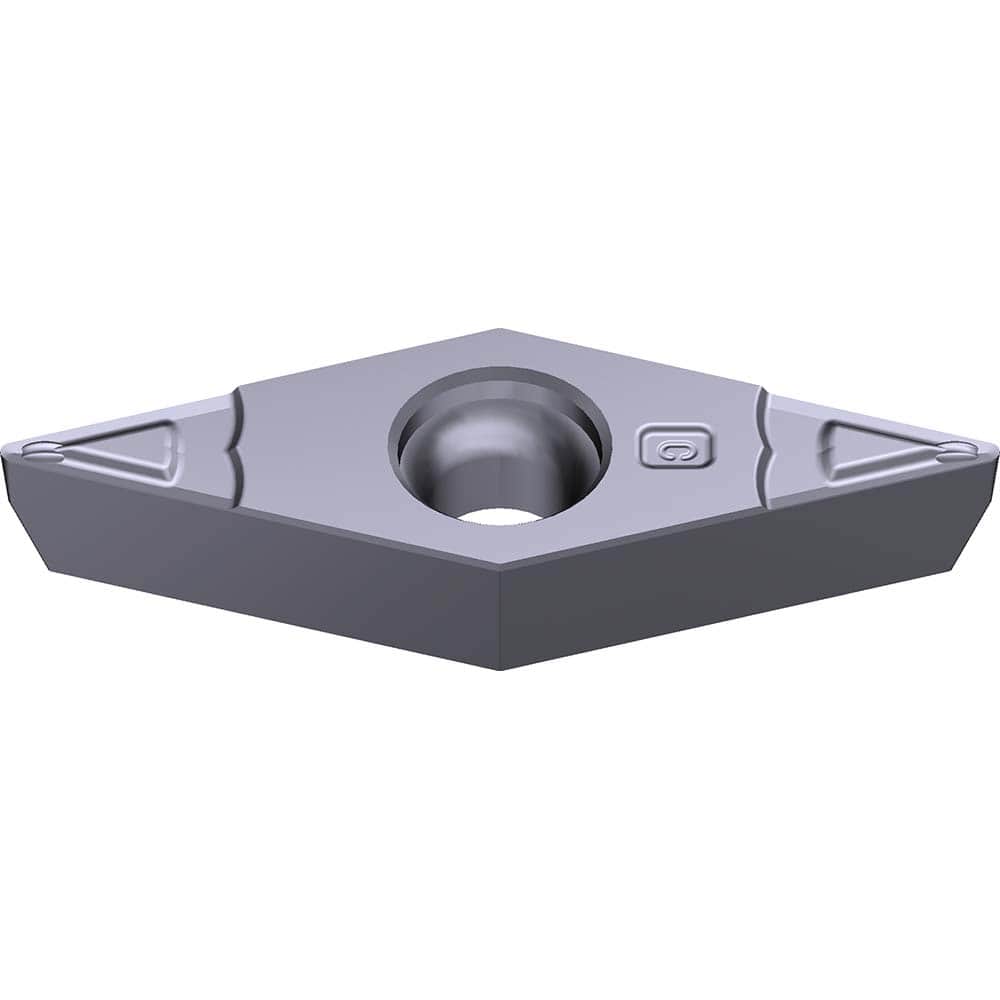

VBMT331EGU-AC5015S Carbide Turning Insert Absotech Bronze Finish, 0.6535″ Long, 3/8″ Inscribed Circle, 0.0157″ Corner Radius, 35° Included Angle, Series AC5000S
Item #: 12156030
Brand: Sumitomo
Model #: 19T5DDN
Product Specifications
| Insert Style | VBMT |
| Insert Shape Code | V |
| Insert Size Code | 331 |
| Insert Shape | Diamond |
| Clearance Code | B |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC5015S |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 35.0 |
| Relief Angle | 5 |
| Series | AC5000S |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6500 - 0.7000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6535 |
| Primary Workpiece Material | Powdered Metal |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel |
| Ansi Code | VBMT331EGU |
| Iso Code | VBMT160404N-GU |
| Standards | ISO 13399; ANSI |
| Manufacturers Catalog Number | VBMT331EGU-AC5015S |
| Chip Breaker | EGU |
| Coating/Finish | Absotech Bronze |
